ICC 650MHz CAT6A Bulk Cable with FTP and CMR Blue Copper Premise Cable, 1000ft Reel - Spline
SKU#: ICCABR6FBL
UPC#:633758035248
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- ETL Verified to TIA-568-C.2.
- UL Type CMR for non-plenum.
- UL Type CMP for plenum.
- FT4.
- UL 444.
- Specs+
- IEEE 802.3an
- TIA-568-C.2
- RoHS
- ICEA S-116-732
- Size: 23 AWG
- 4 twisted pair
- Solid Bare Copper
- Material: FOAM PE&PE
- Insulation Dia.(in): P1: 0.046″±0.002″, P2: 0.042″±0.002″, P3: 0.046″±0.002″, P4: 0.042″±0.002″
- Material: PVC
- Insulation Dia.(in): 0.30″±0.008″
- Mylar shielding for EMI (electromagnetic interference) protection
- For grounding to CAT 6A FTP Shielded connector
- Material: Solid Tinned Copper 1/0.40T
- Material: Aluminum Polyester
- Material: PE
- 10 Base-T
- 100Base-T (IEEE 802.3u)
- 1000 Base-T
- High Definition Video
- Digital Broadcast Video/IP Video/VoIP
- ISDN/ADSL
- 622Mbps ATM

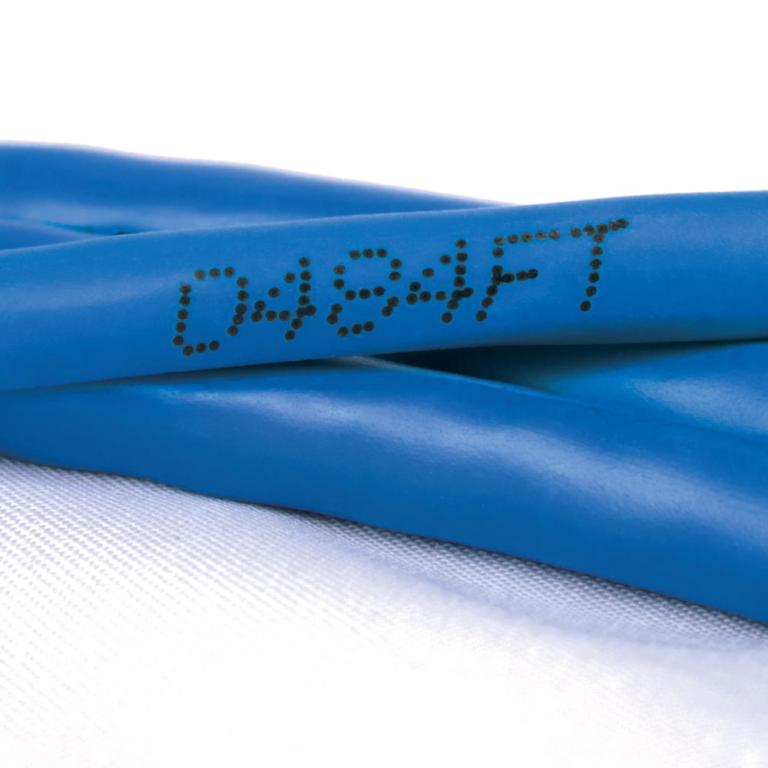

- Sequential footage marking for easy usage tracking.

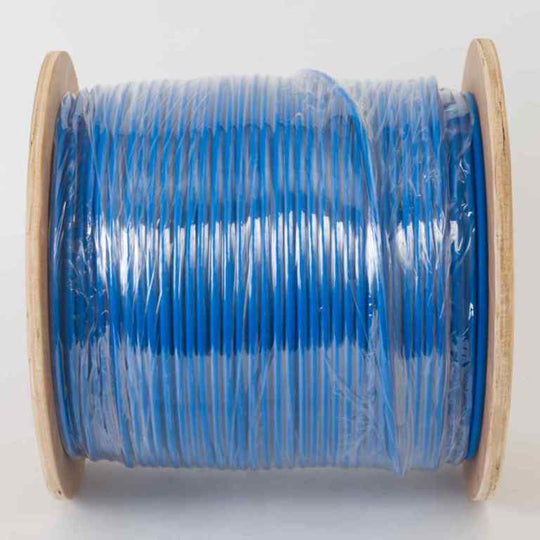

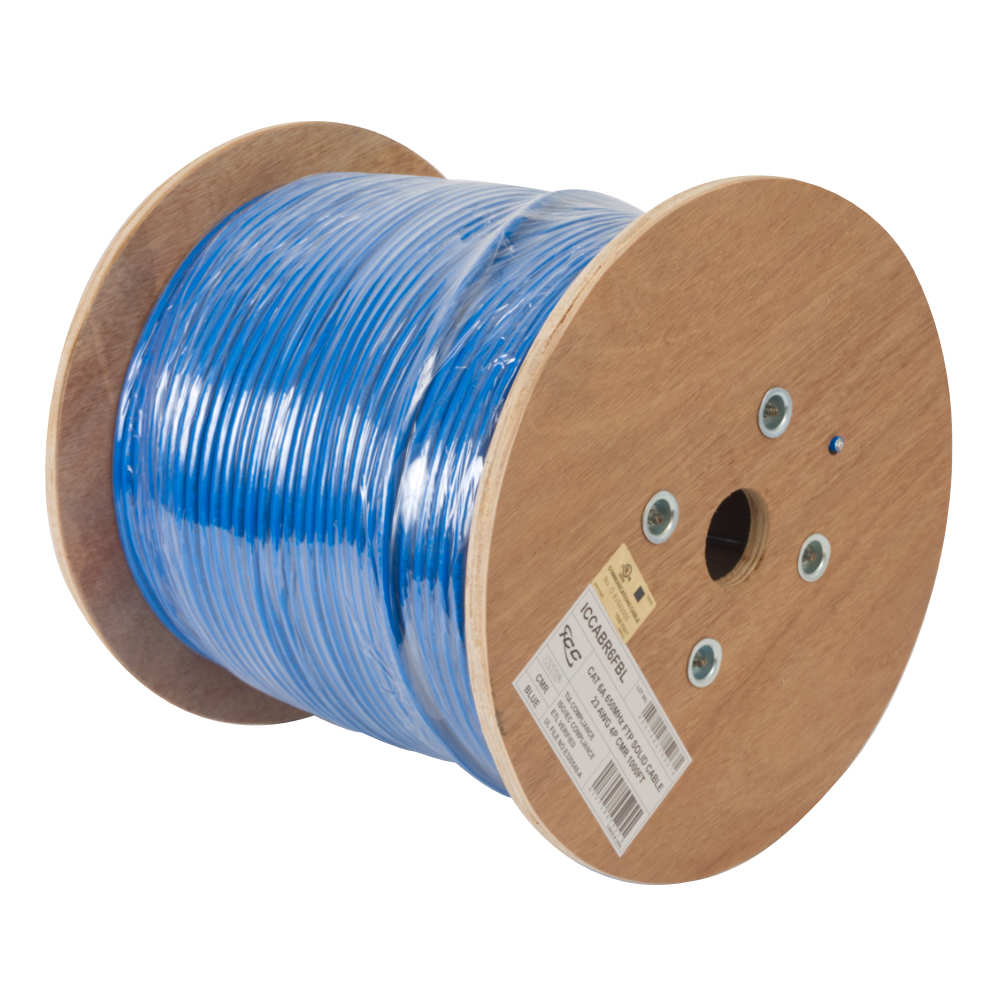

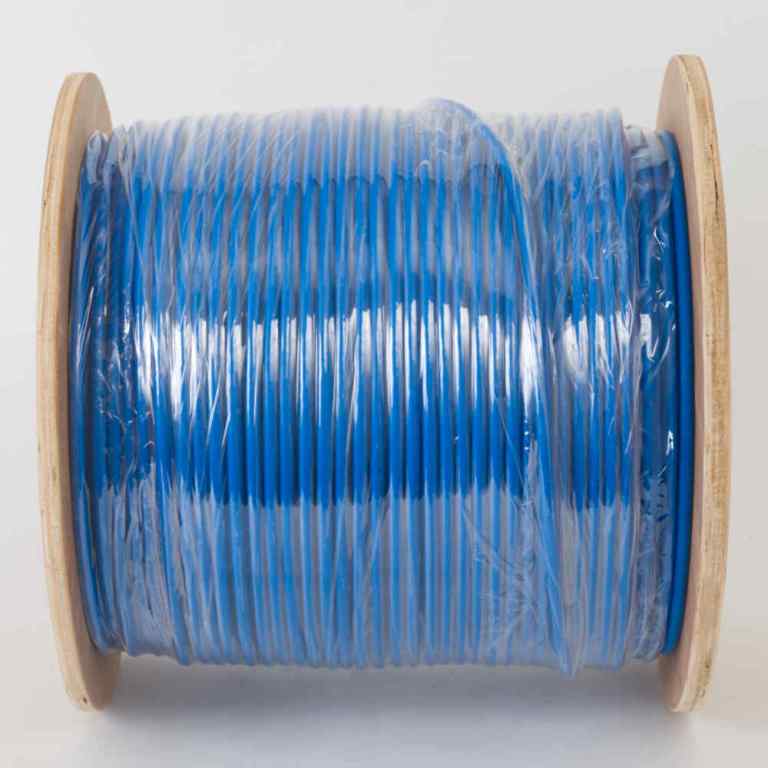

- Packaged on a reel (Size: 15.75″W X 13.0″H)
- Reviews+
- ETL Verified to TIA-568-C.2.
- UL Type CMR for non-plenum.
- UL Type CMP for plenum.
- FT4.
- UL 444.
- IEEE 802.3an
- TIA-568-C.2
- RoHS
- ICEA S-116-732
- Size: 23 AWG
- 4 twisted pair
- Solid Bare Copper
- Material: FOAM PE&PE
- Insulation Dia.(in): P1: 0.046″±0.002″, P2: 0.042″±0.002″, P3: 0.046″±0.002″, P4: 0.042″±0.002″
- Material: PVC
- Insulation Dia.(in): 0.30″±0.008″
- Mylar shielding for EMI (electromagnetic interference) protection
- For grounding to CAT 6A FTP Shielded connector
- Material: Solid Tinned Copper 1/0.40T
- Material: Aluminum Polyester
- Material: PE
- 10 Base-T
- 100Base-T (IEEE 802.3u)
- 1000 Base-T
- High Definition Video
- Digital Broadcast Video/IP Video/VoIP
- ISDN/ADSL
- 622Mbps ATM
- Sequential footage marking for easy usage tracking.
- Packaged on a reel (Size: 15.75″W X 13.0″H)
650MHz CAT6A Bulk Cable with FTP and CMR Blue Copper Premise Cable, 1000ft - Spline
ICC’s CAT6A 10Gig FTP shielded cable provides transmission performance beyond 650MHz and Alien Crosstalk requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data-intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Certified Site Cabling System Limited Warranty when installed by ICC Certified installers (conditions apply). The cable comes packaged on a reel.
Standard:
Construction:
Conductor:
Insulation
Jacket:
Drain Wire:
Shield:
X Separator:
Weight: 50.2 LBS
Temperature Rating (°F)
Installation temperature: 32 to 140 Fahrenheit (°F)
Operating temperature: -4 to 167 Fahrenheit (°F)
650MHz CAT6A Bulk Cable with FTP and CMR Blue Copper Premise Cable, 1000ft - Spline
ICC’s CAT6A 10Gig FTP shielded cable provides transmission performance beyond 650MHz and Alien Crosstalk requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data-intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Certified Site Cabling System Limited Warranty when installed by ICC Certified installers (conditions apply). The cable comes packaged on a reel.
Standard:
Construction:
Conductor:
Insulation
Jacket:
Drain Wire:
Shield:
X Separator:
Weight: 50.2 LBS
Temperature Rating (°F)
Installation temperature: 32 to 140 Fahrenheit (°F)
Operating temperature: -4 to 167 Fahrenheit (°F)
