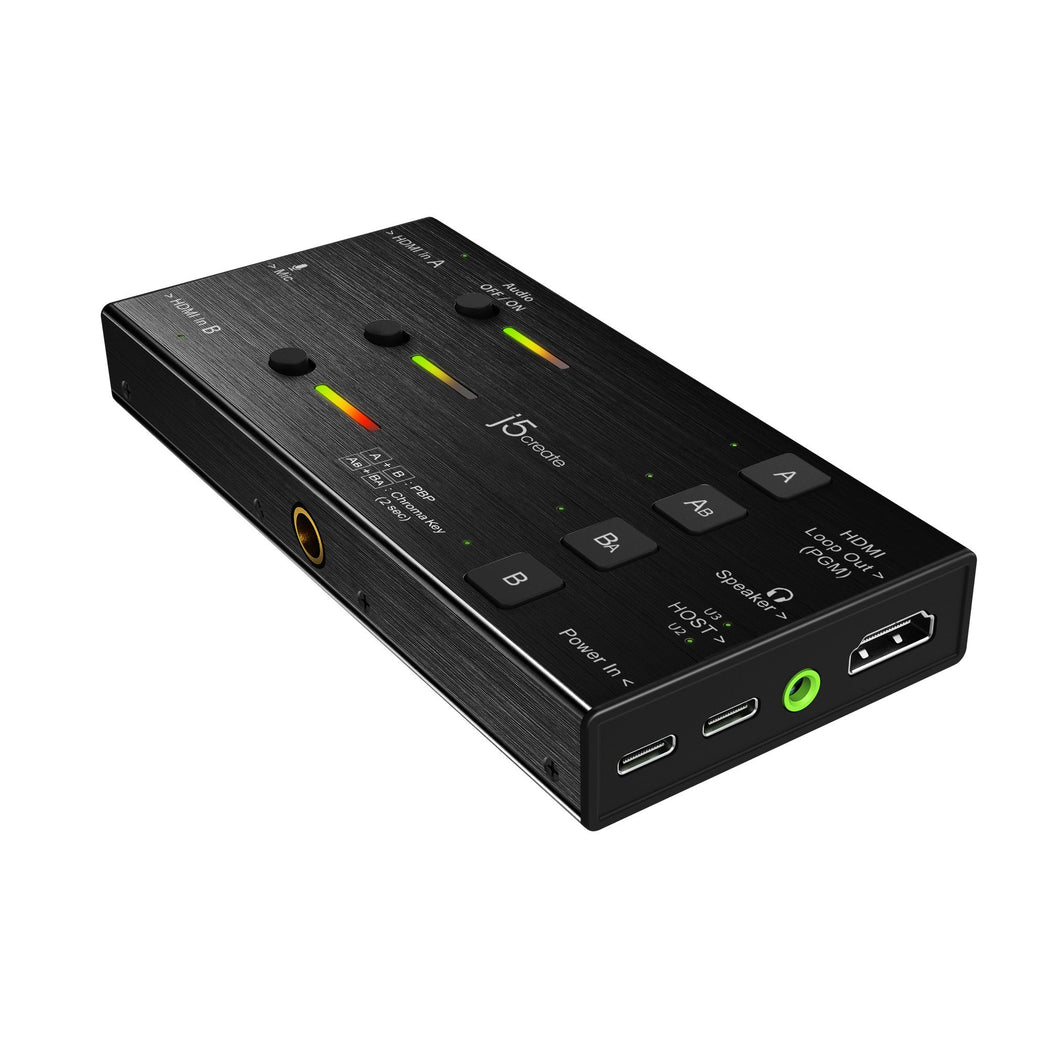

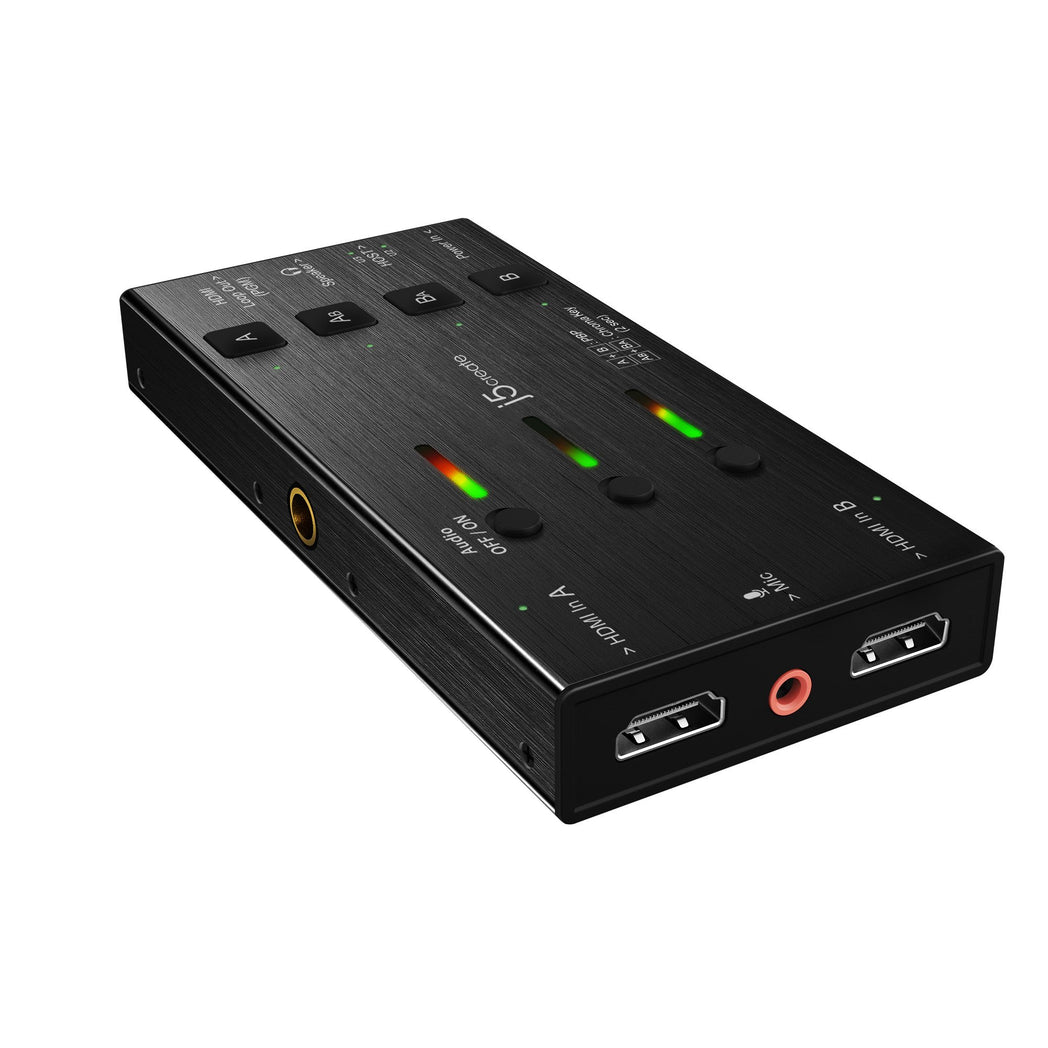

j5create JVA06 Dual HDMI™ Video Capture
SKU#: JVA06
UPC#:847626004889
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Windows® 7 and later (Driver installation is required on Windows® 7)
- macOS® X 10.10 and later
- Linux®
- CPU: Intel® Core™ i5 Gen 4 (3 GHz & above)
- CPU: Intel® Core™ i7 Gen 4 & above
- RAM: 4 GB memory or higher (8 GB is recommended)
- Available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0
- Android™ 7.0 and higher
- CPU: Core 2 GHz & above
- RAM: 4 GB memory or higher
- Windows®: OBS™, XSplit® Broadcaster
- Mac®: OBS™, QuickTime®
- Android™ : CameraFi™ Live

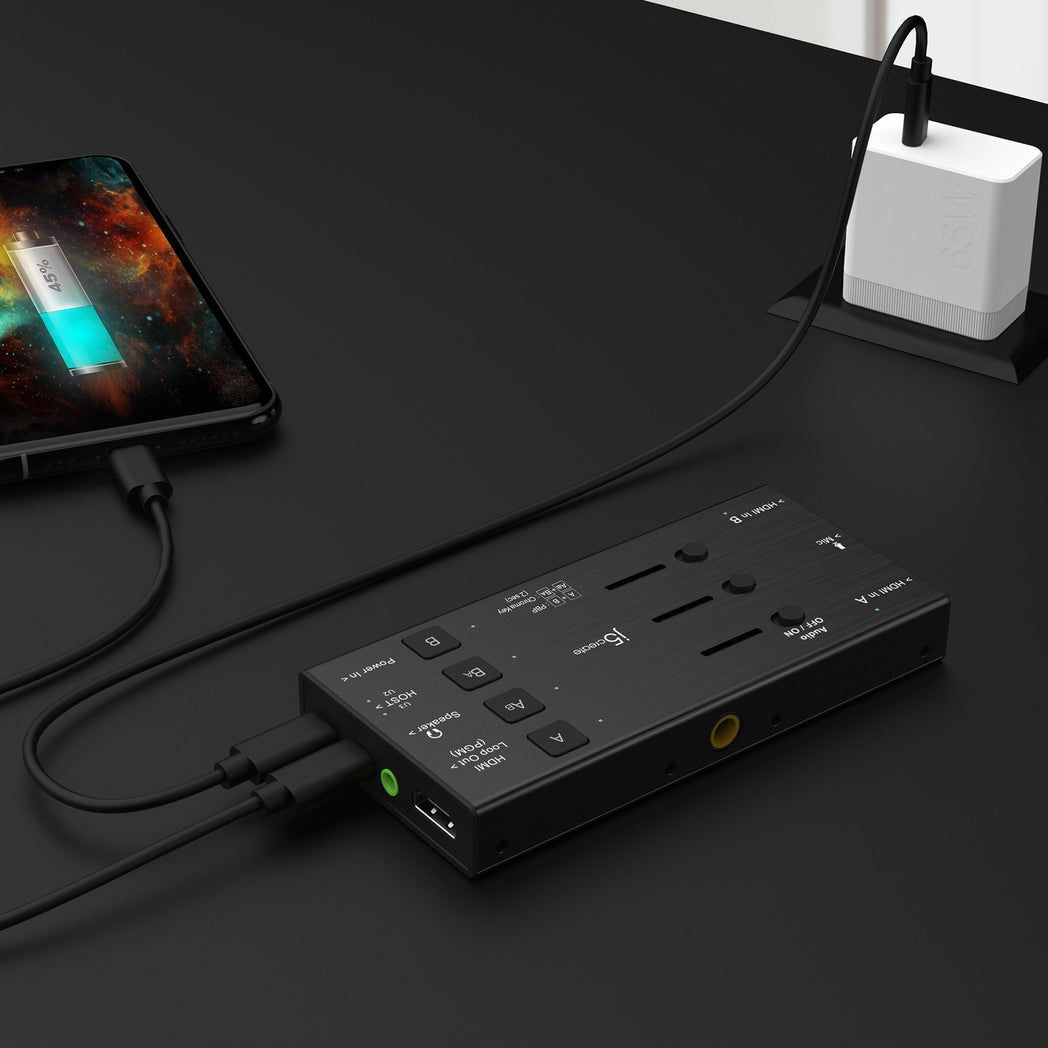

- The JVA06 can connect to a USB-C™ port that does not support Power Delivery, but it will not pass power through the connected device.
- When connecting a smartphone to the JVA06, we highly recommend using the USB™ 2.0 C-to-C cable included with your JVA06.

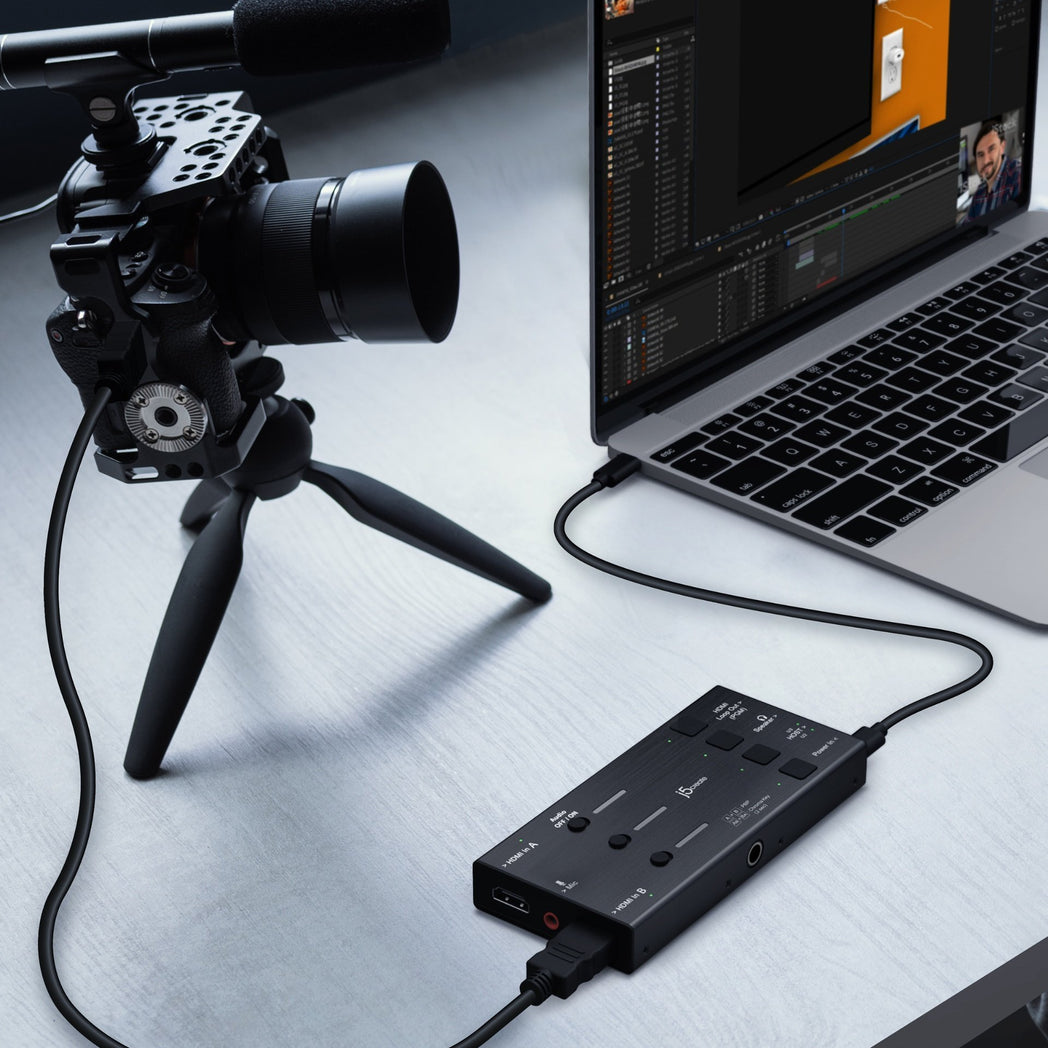

- When connecting to a computer through a USB-C™ port, we recommend purchasing our JUCX01 or JUCX03 USB-C™ 3.1 cable for better image quality and performance.
- Features+

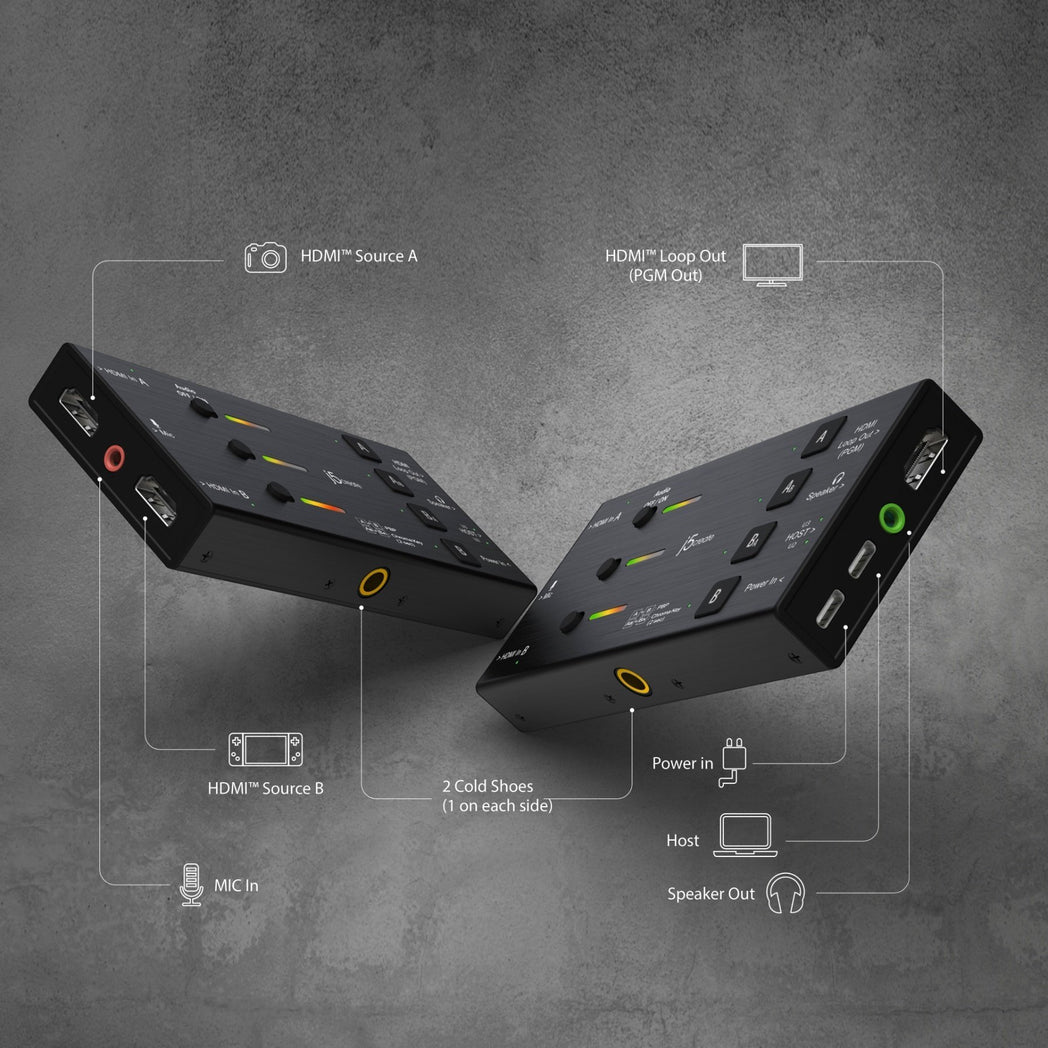

- Dual HDMI™ input for capturing 2 channels
- Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
- Uncompressed 1080p 60 Hz capture via HDMI™ 1.3a
- Supports 1080p 60 Hz HDMI™ loop out (PGM out)
- 6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)

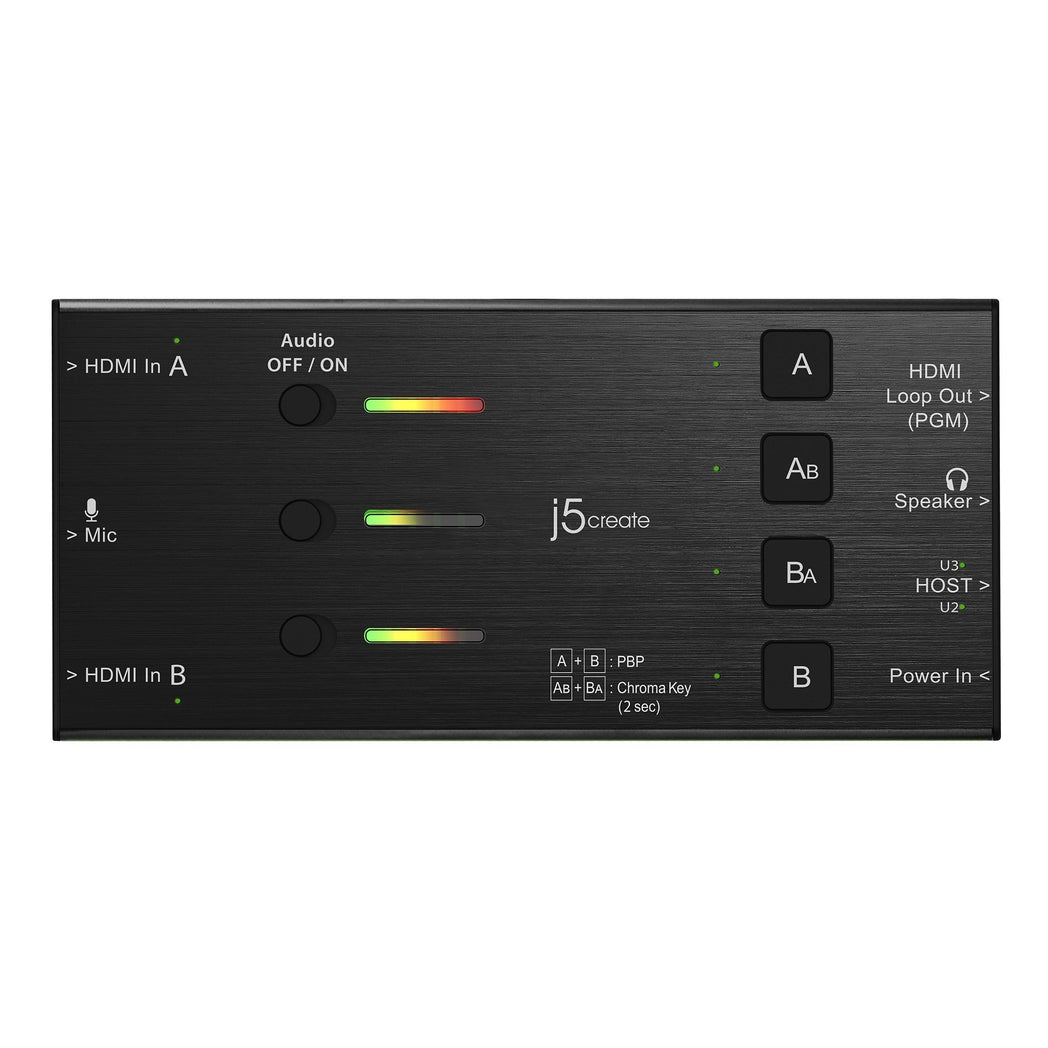

- 4 buttons to quickly change display settings
- Automatically remember previous settings
- Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
- 3 individual audio mixer on/off switches supported
- 3 channel volume indicators

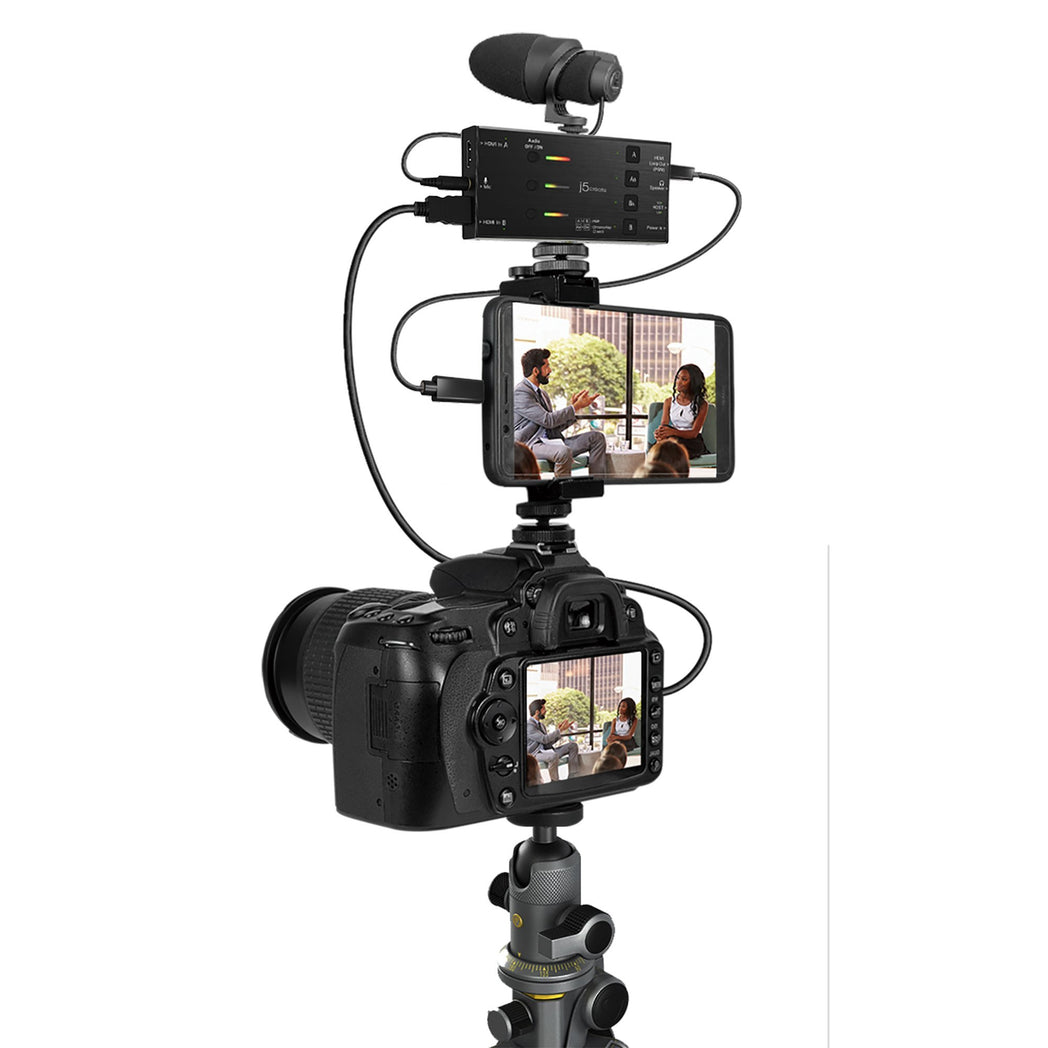

- Easy DSLR attachment with 2 cold shoes embedded
- Supports USB-C™ power delivery 3.0 60W
- UVC standard, plug & play
- LED activity indicator

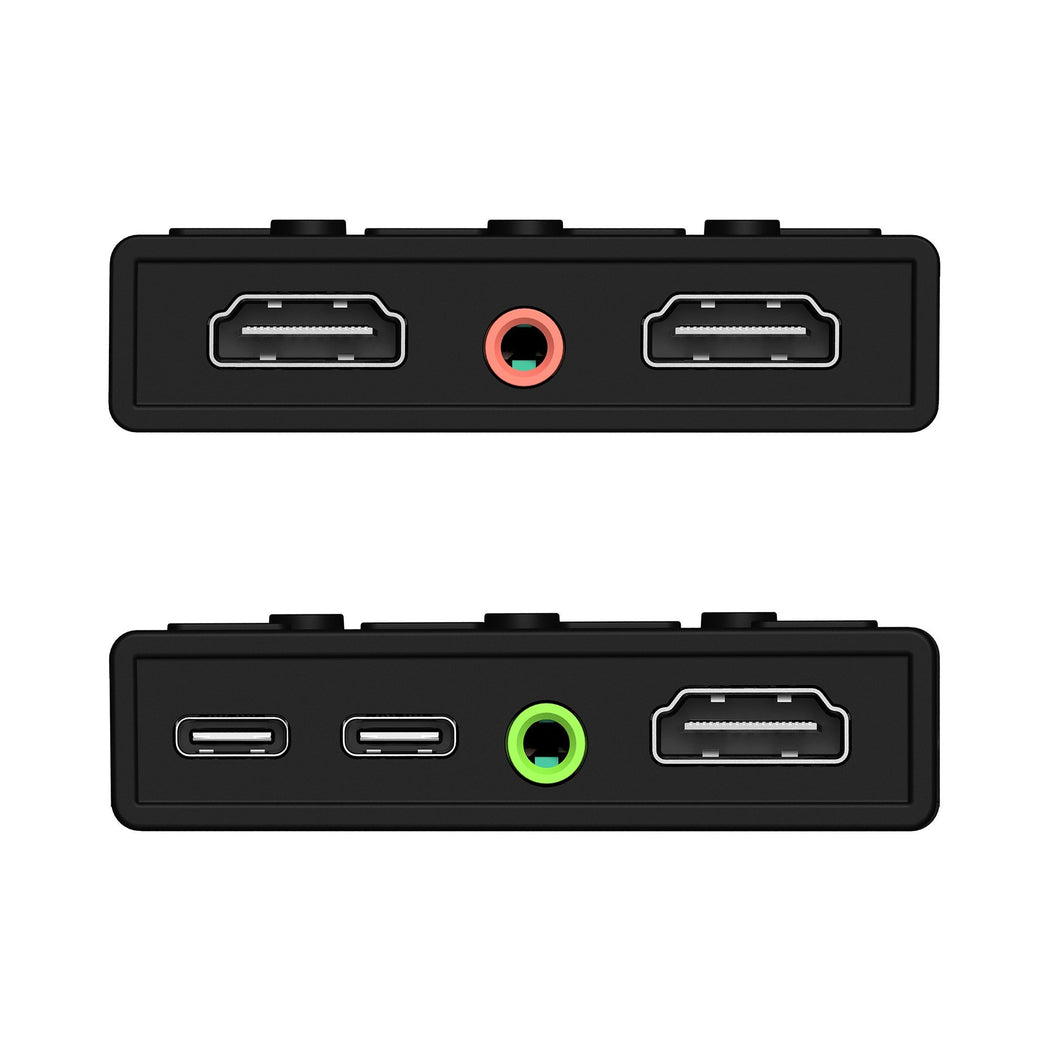

- HDMI™ IN
- USB™ Link
- Volume Unit
- Image Matting: Press Chroma Keys "AB + BA" for 2 seconds to switch on/off image synthesis for HDMI™ source A and HDMI™ source B
- Specs+
- Package Contents+
- 1 - JVA06 Dual HDMI™ Video Capture
- 1 - Quick Installation Guide
- 1 - USB-C™ 2.0 to USB-C™ cable
- 1 - USB-C™ 3.0 to USB™ Type-A cable
- 1 - 39.4 in./100 cm HDMI™ cable
- Reviews+
- Windows® 7 and later (Driver installation is required on Windows® 7)
- macOS® X 10.10 and later
- Linux®
- CPU: Intel® Core™ i5 Gen 4 (3 GHz & above)
- CPU: Intel® Core™ i7 Gen 4 & above
- RAM: 4 GB memory or higher (8 GB is recommended)
- Available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0
- Android™ 7.0 and higher
- CPU: Core 2 GHz & above
- RAM: 4 GB memory or higher
- Windows®: OBS™, XSplit® Broadcaster
- Mac®: OBS™, QuickTime®
- Android™ : CameraFi™ Live
- The JVA06 can connect to a USB-C™ port that does not support Power Delivery, but it will not pass power through the connected device.
- When connecting a smartphone to the JVA06, we highly recommend using the USB™ 2.0 C-to-C cable included with your JVA06.
- When connecting to a computer through a USB-C™ port, we recommend purchasing our JUCX01 or JUCX03 USB-C™ 3.1 cable for better image quality and performance.
- Dual HDMI™ input for capturing 2 channels
- Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
- Uncompressed 1080p 60 Hz capture via HDMI™ 1.3a
- Supports 1080p 60 Hz HDMI™ loop out (PGM out)
- 6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)
- 4 buttons to quickly change display settings
- Automatically remember previous settings
- Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
- 3 individual audio mixer on/off switches supported
- 3 channel volume indicators
- Easy DSLR attachment with 2 cold shoes embedded
- Supports USB-C™ power delivery 3.0 60W
- UVC standard, plug & play
- LED activity indicator
- HDMI™ IN
- USB™ Link
- Volume Unit
- Image Matting: Press Chroma Keys "AB + BA" for 2 seconds to switch on/off image synthesis for HDMI™ source A and HDMI™ source B
- 1 - JVA06 Dual HDMI™ Video Capture
- 1 - Quick Installation Guide
- 1 - USB-C™ 2.0 to USB-C™ cable
- 1 - USB-C™ 3.0 to USB™ Type-A cable
- 1 - 39.4 in./100 cm HDMI™ cable
j5create JVA06 Dual HDMI™ Video Capture

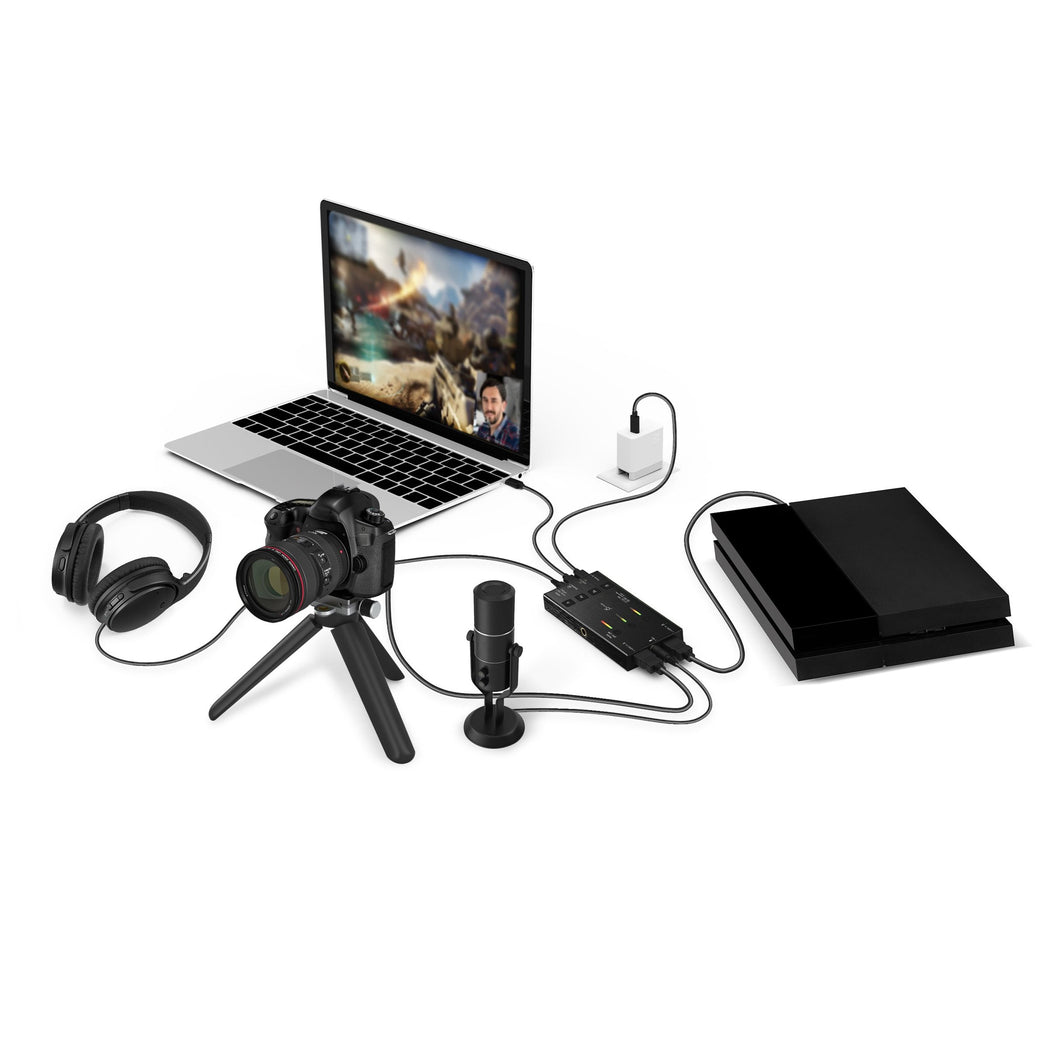

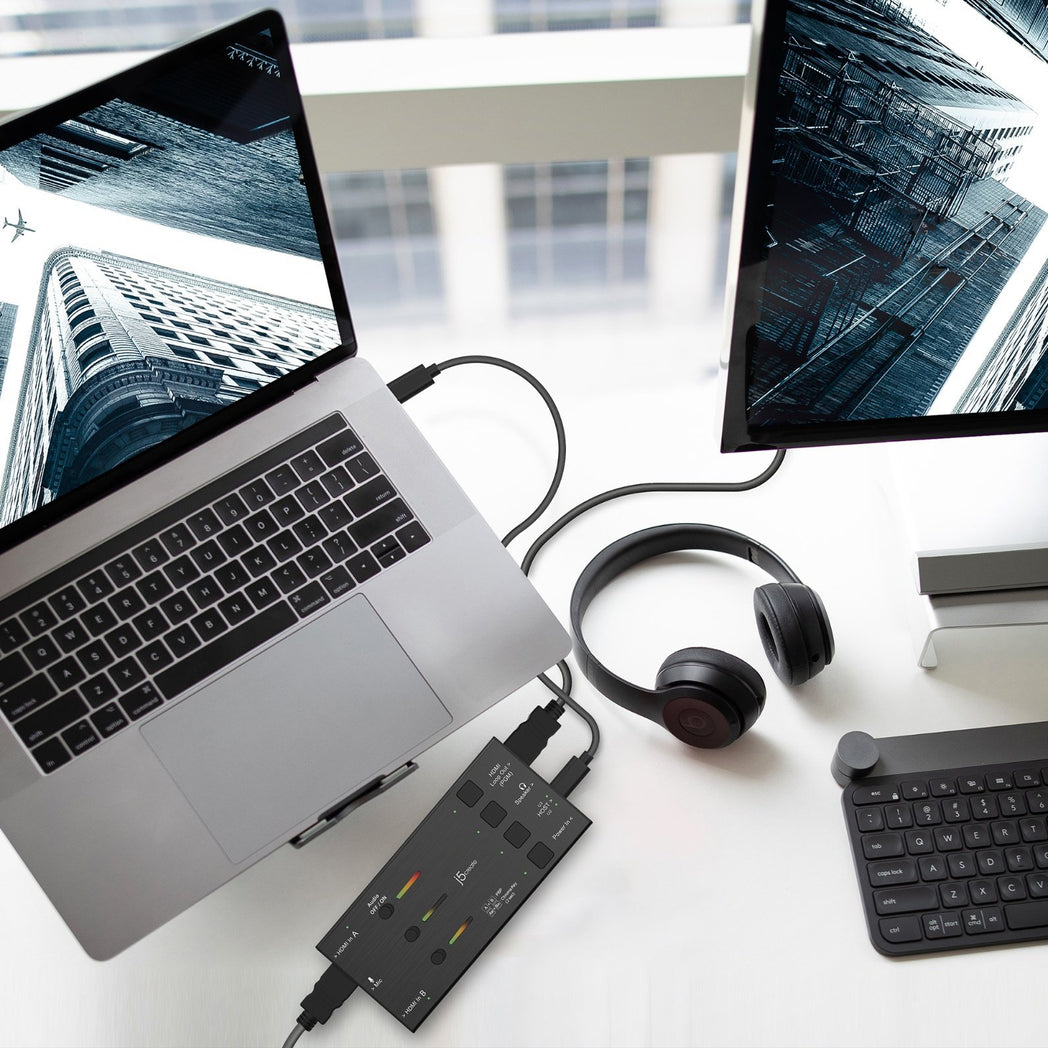

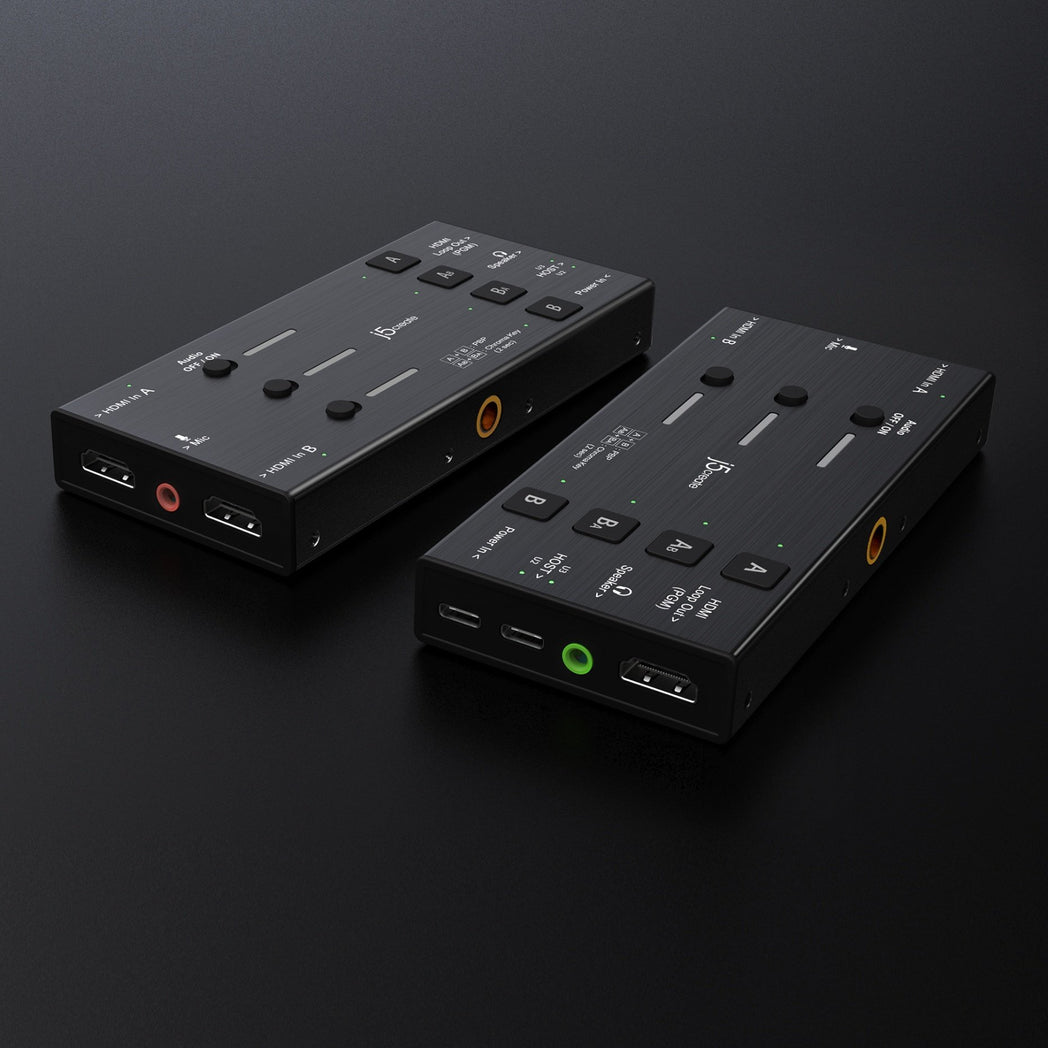

The JVA06 Dual HDMI™ Video Capture is a versatile USB™ video capture that works with all major platforms. It allows you to capture uncompressed 1080p video content from 2 HDMI™ sources simultaneously without compromising video quality. With a flexible audio connection via HDMI™ or analog 3.5 mm ports, you can record audio directly from game consoles, computers, or output to speakers/mixers. You can also press Chroma Keys "AB + BA" for 2 seconds to synthesize images from the HDMI™ in A and HDMI™ in B. Whether you’re live streaming or webcasting an event or a conference, there are six screen mode configurations available for PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can adjust the display settings with the built-in buttons.
Featuring an audio mixer and cold shoe adapter for DSLR, the JVA06 is perfect for content producers, social media influencers, entrepreneurs, and others to livestream, broadcast, or edit videos for web series, webinars and more!
System Requirements
- Computer
- Phone
- Recommended software
Special Notes
|
Hardware |
|
|
Warranty |
2-Year Limited |
|

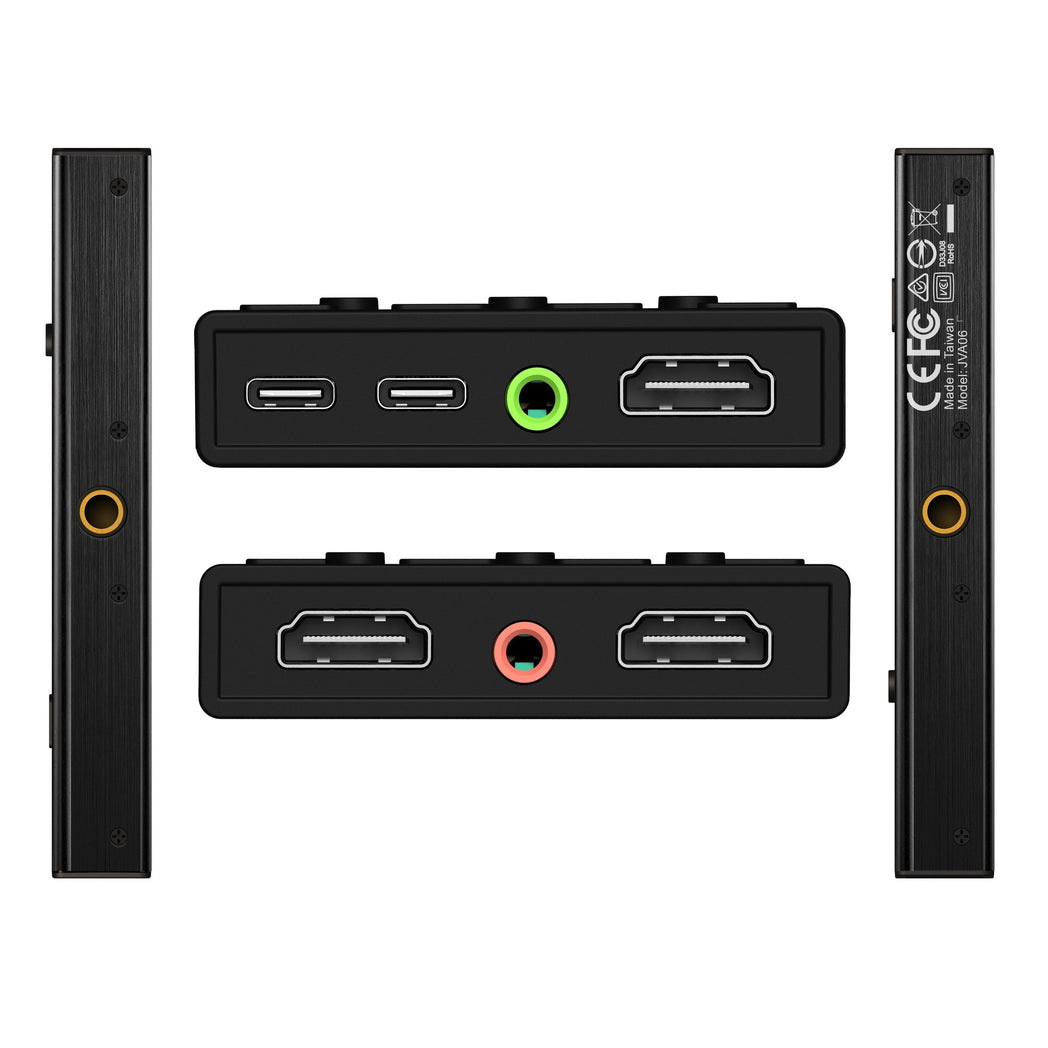

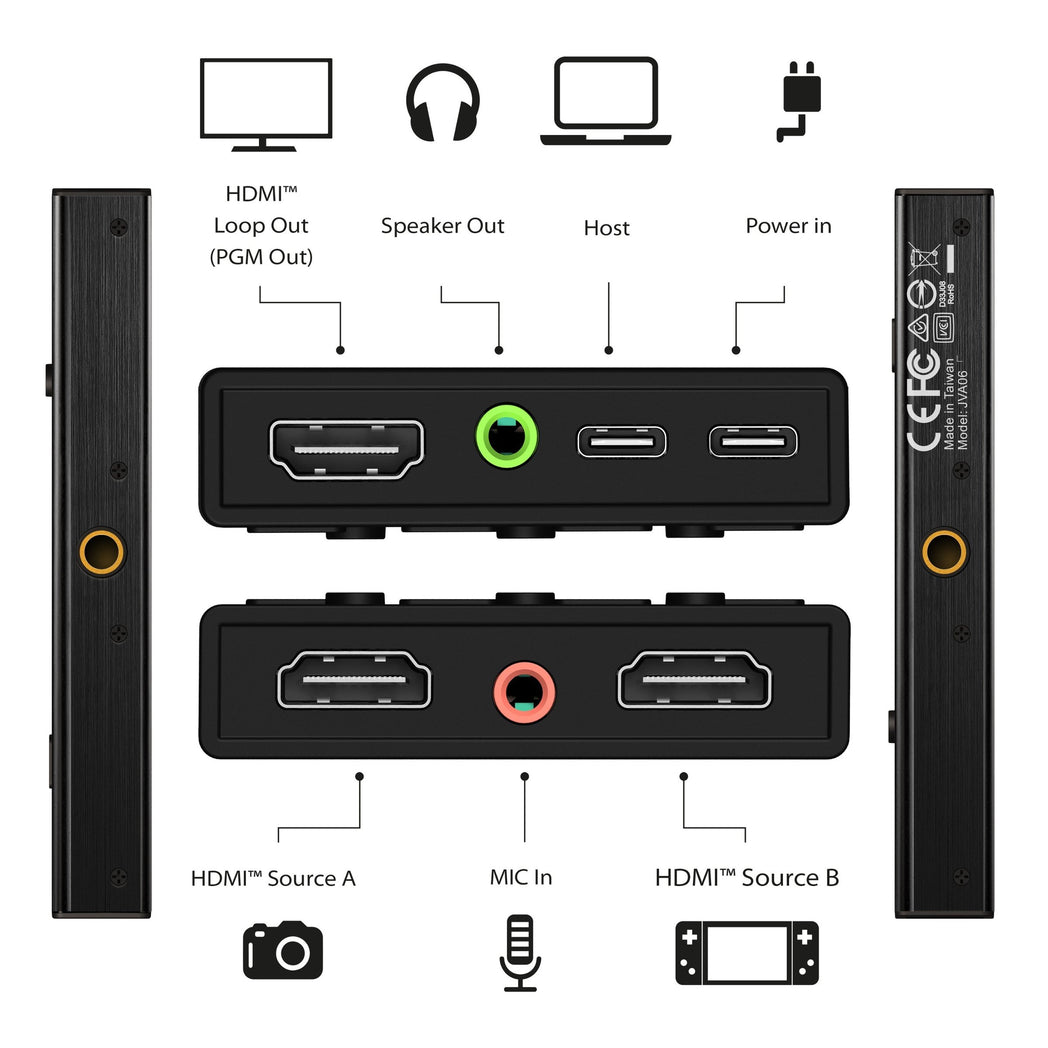

Host Connector |
1 - USB-C™ Male |
|
Video Input |
2 - HDMI™ Female |
|
Video Output |
1 - HDMI™ Female |
|
Audio Input |
HDMI™ Or 3.5 Mm Mic In |
|
Audio Output |
HDMI™ Or 3.5 Mm Speaker Out |
|
Power Source |
Bus-Powered Or Self-Powered (USB-C™ PD) |
|
Ports |
1 - USB-C™ 3.0 (Host) |
|
Performance |
|
|
Display Input Supported Resolutions |
640 X 480 @ 60 |
|
Display Output Supported Resolutions (HDMI™ /UVC) |
640 X 480 @ 60 |
|
Maximum Display Refresh Rate |
60 Hz |
|
Audio Channel |
2 |
|
Audio Frequency |
48 KHz |
|
Mic |
Stereo Microphone Supported 24-Bit Sigma-Delta ADC |
|
Headset |
40 MW Output Power Into 16Ω At 3.3V |
|
Compression |
USB™ 2.0: MJPG |
|
Encode Format |
USB™ 2.0: MJPG |
|
HDR Supported |
No |
|
Power |
|
|
Power Delivery |
Up To 60W Via USB-C™ |
|
Power Consumption |
≦ 1A |
|
Input Current |
Max 3A |
|
Input Voltage |
5V- 20V |
|
Output Current |
Max 3A |
|
Output Voltage |
5V- 20V |
|
Physical Specifications |
|
|
Color |
Black |
|
Enclosure Type |
Aluminum |
|
Cable Length |
USB-C™ To USB-C™: 23.6 Inch (60 Cm) |
|
Product Height |
0.7 Inch (18.4 Mm) |
|
Product Width |
5.3 Inch (134.6 Mm) |
|
Product Depth |
2.5 Inch (63.7 Mm) |
|
Product Weight |
6 Oz (172g) |
|
Storage Temperature |
14 To 149°F (-10 To 65°C) |
|
Storage Humidity |
< 85% Non-Condensing |
|
Operating Temperature |
32 To 118°F (0 To 45°C) |
|
Operating Humidity |
< 85% Non-Condensing |
