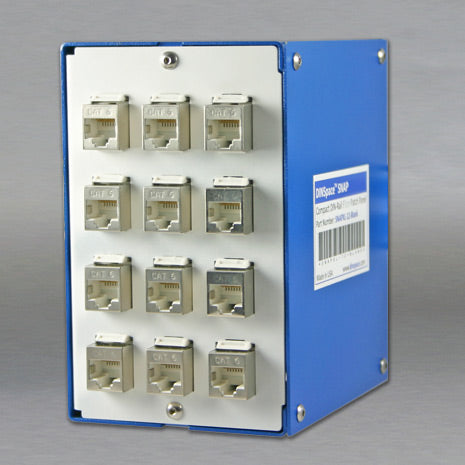

DINSpace SNAP-Cu-12 DIN-Rail Mount CAT 6 Copper Patch Panel, 12 Ports
SKU#: SNAP-Cu-12
UPC#:
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Compact size perfect for limited space enclosures
- UL Listed 1863, CE
- Versatile surface or DIN-Rail mount capability

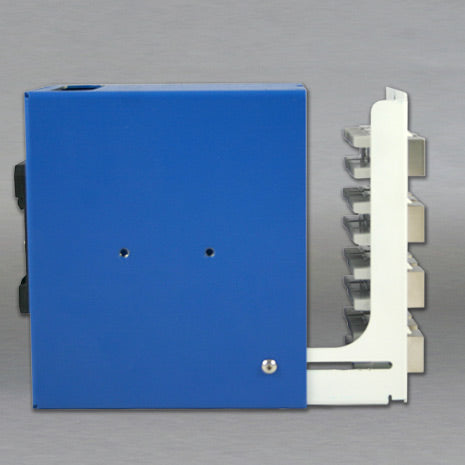

- Slide-hinged faceplate aids field termination
- ROHS Compliant Construction
- Rugged metal construction with lifetime warranty
- Specs+
- Patch panel, 12ea. keystone-style shielded CAT 6 jacks, punch-down tool, DIN-Rail mounting adapter
- Lifetime warranty on materials and workmanship.
- Patch panel body and faceplate: 18 gauge powder-coat painted steel
- CAT 6 jacks: Thermoplastic body with steel plated-tin, electrolytic (SPTE) shield
- Dimensions with adapters installed: (H x D x W) 5.5″ x 5.33″ x 3.43″

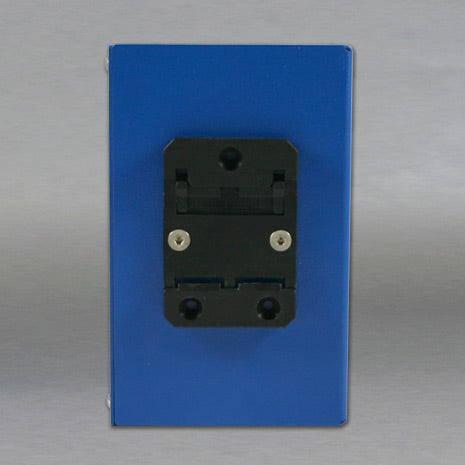

- Mounting options: Rear DIN-Rail, side DIN-Rail or rear surface
- Weight: 2 lbs.
- Protection class: IP20
- Product Specifications
- Standards: UL Listed 1863 (Communications-Circuit Accessories), CE
- Adapter Wiring Standards
- Keystone jacks: Punch down CAT 6 shielded, Class E, TIA/EIA 568A/B
- Standards: TIA/EIA-568B-B.2.1 CAT 6, ISO/IEC 11801 2nd edition, EN 50173 2nd edition, IEC60603-7
- Field cabling: Accepts AWG 23~26 solid wire
- Electrical Rating
- Current rating: 1.5 Amps
- Insulation resistance: 500 M ohms Minimum
- Contact resistance: 20 M ohms Maximum
- DC resistance: 0.1 ohms Maximum
- Ambient Conditions
- Operating temperature: -40 deg. F to 150 deg. F (-40 deg. C to 68 deg. C)
- Storage/transport temperature: -40 deg. F to 150 deg. F (-40 deg. C to 68 deg. C)
- Reviews+
- Compact size perfect for limited space enclosures
- UL Listed 1863, CE
- Versatile surface or DIN-Rail mount capability
- Slide-hinged faceplate aids field termination
- ROHS Compliant Construction
- Rugged metal construction with lifetime warranty
- Patch panel, 12ea. keystone-style shielded CAT 6 jacks, punch-down tool, DIN-Rail mounting adapter
- Lifetime warranty on materials and workmanship.
- Patch panel body and faceplate: 18 gauge powder-coat painted steel
- CAT 6 jacks: Thermoplastic body with steel plated-tin, electrolytic (SPTE) shield
- Dimensions with adapters installed: (H x D x W) 5.5″ x 5.33″ x 3.43″
- Mounting options: Rear DIN-Rail, side DIN-Rail or rear surface
- Weight: 2 lbs.
- Protection class: IP20
- Product Specifications
- Standards: UL Listed 1863 (Communications-Circuit Accessories), CE
- Adapter Wiring Standards
- Keystone jacks: Punch down CAT 6 shielded, Class E, TIA/EIA 568A/B
- Standards: TIA/EIA-568B-B.2.1 CAT 6, ISO/IEC 11801 2nd edition, EN 50173 2nd edition, IEC60603-7
- Field cabling: Accepts AWG 23~26 solid wire
- Electrical Rating
- Current rating: 1.5 Amps
- Insulation resistance: 500 M ohms Minimum
- Contact resistance: 20 M ohms Maximum
- DC resistance: 0.1 ohms Maximum
- Ambient Conditions
- Operating temperature: -40 deg. F to 150 deg. F (-40 deg. C to 68 deg. C)
- Storage/transport temperature: -40 deg. F to 150 deg. F (-40 deg. C to 68 deg. C)
DINSpace SNAP-Cu-12 Compact Copper Patch Panel with 12ea. Shielded CAT 6 Ethernet RJ45 Jacks Supporting Shielded Or Unshielded CAT 5/5e/6 Cabling.
SNAP® Cu Shielded CAT 6 Patch Panel
Compact DIN-Rail or surface-mount Ethernet shielded CAT 6 patch panel. Keystone jacks support CAT 6, CAT 5 or CAT 5e cabling in shielded or unshielded configurations. Compact size allows minimum space requirements within control cabinetry. Device includes large openings on top and bottom of the patch panel to accommodate a large volume of field Ethernet cabling. Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”.
