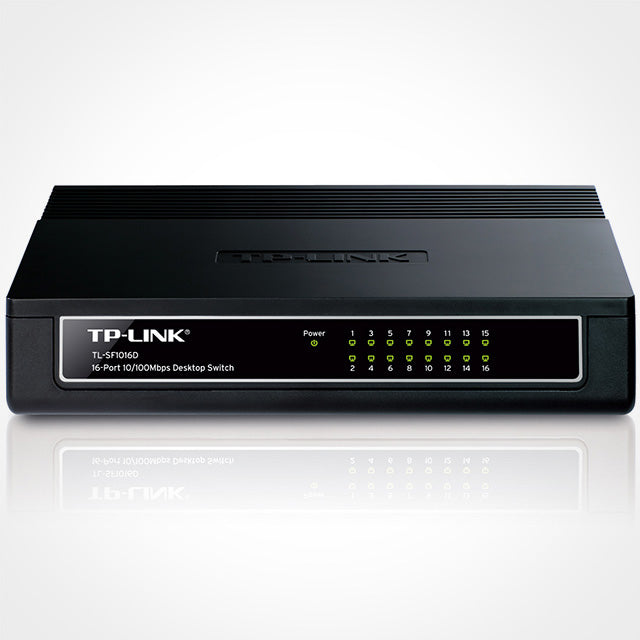

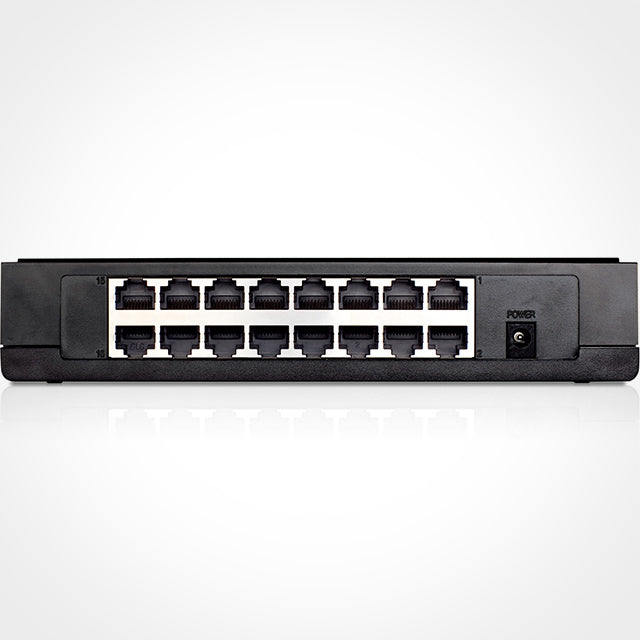

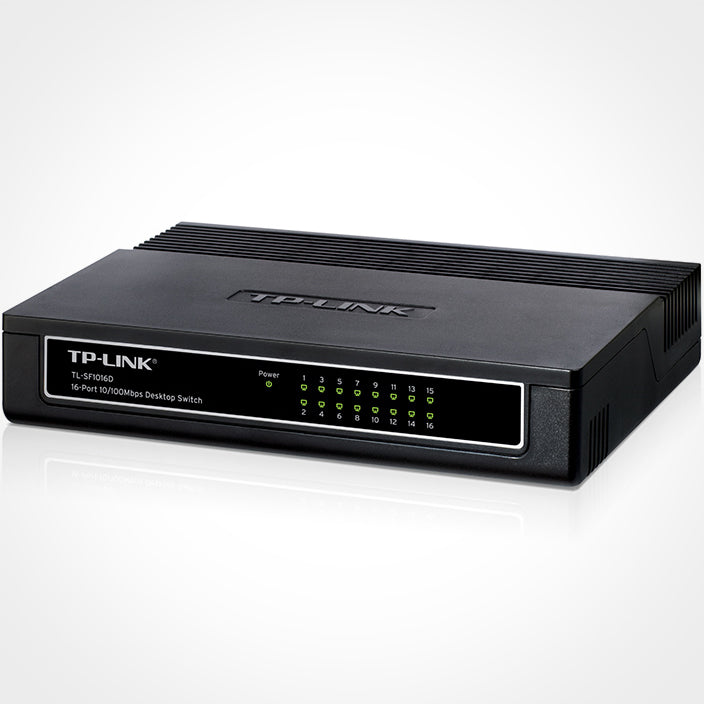

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch
SKU#: TL-SF1016D
UPC#:845973020293
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Green Technology Saves up to 80% Power
- Auto-MDI/MDIX Eliminates Need for Crossover Cables
- Supports MAC Address Auto-Learning & Auto-Aging
- Quiet
- Specs+
- Package Contents+
- 16-Port 10/10Mbps Desktop Switch
- Power Adapter
- User Guide
- Reviews+
- Green Technology Saves up to 80% Power
- Auto-MDI/MDIX Eliminates Need for Crossover Cables
- Supports MAC Address Auto-Learning & Auto-Aging
- Quiet
- 16-Port 10/10Mbps Desktop Switch
- Power Adapter
- User Guide
TP-LINK 16-Port Ethernet Switch
What This Product Does
The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save up to 80%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.
TP-LINK Green Technology
This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
| HARDWARE FEATURES | |
|---|---|
| Interface | 16 × 10/100Mbps RJ45 Ports Auto negotiation / Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter 100VAC ~ 240VAC (Output: 9VDC / 0.6A) |
| Mac Address Table | 2K |
| Dimensions ( W x D x H ) | 7.9 × 5.6 × 1.6 in. (200 × 142 × 40 mm) |
| Max Power Consumption | 2W |
| Max Heat Dissipation | 7.0 BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology, saving power up to 80% 802.3x Flow Control, Back Pressure |
| OTHERS | |
|---|---|
| Certification | FCC, RoHs |
| Package Contents | 16-Port 10/10Mbps Desktop Switch TL-SF1016D Power Adapter User Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
