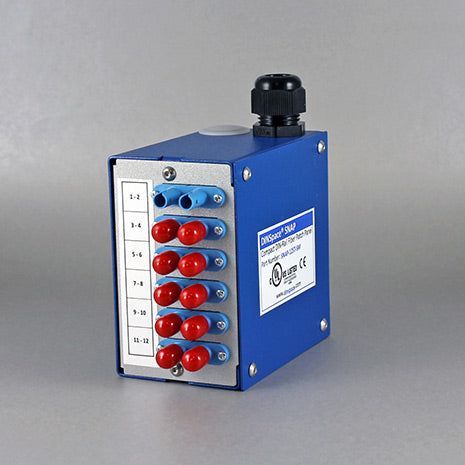

DINSpace SNAP-12ST-SC-SM Compact Fiber Optic Patch Panel, 12 Ports
SKU#: SNAP-12ST-SC-SM
UPC#:
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Compact size perfect for limited space enclosures
- UL Listed 1863
- Versatile surface or DIN-Rail mount capability
- Slide-hinged faceplate aids field termination
- Patch or fusion splice field termination standard
- Rugged metal construction with lifetime warranty
- One splice holder for up to 12 splices
- Specs+
- Patch panel, DIN-Rail mounting adapter, 2ea. cable glands.
- Lifetime warranty on materials and workmanship.
- Patch panel body and faceplate: 18 gauge powder-coat painted steel
- Fiber optic adapters: UL 90 V-0 Thermoplastic
- Cable Glands: Plastic with max. cable diameter of 12mm (14mm max. also available)
- Dimensions with adapters installed: (H x D x W) 6.25″ x 5.125″ x 2.75″

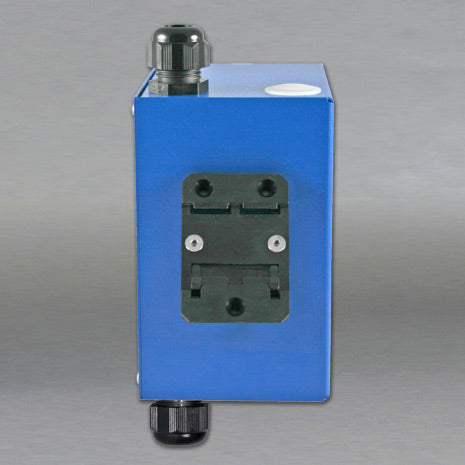

- Mounting Options: Rear DIN-Rail, Side DIN-Rail or surface mount
- Weight: 1.5lbs.
- Protection class: IP20
- Standards: UL Listed 1863 (Communications-Circuit Accessories), CE
- Operating temperature: -40 to +75 deg. C
- Storage/transport temperature: -40 to +80 deg. C
- Relative humidity (non-condensing): 10% to 95%
- Insertion Loss: ≤.3dB (Multimode), ≤.2dB (Singlemode)
- Plug/Unplug Durability: 1000 times
- Reviews+
- Compact size perfect for limited space enclosures
- UL Listed 1863
- Versatile surface or DIN-Rail mount capability
- Slide-hinged faceplate aids field termination
- Patch or fusion splice field termination standard
- Rugged metal construction with lifetime warranty
- One splice holder for up to 12 splices
- Patch panel, DIN-Rail mounting adapter, 2ea. cable glands.
- Lifetime warranty on materials and workmanship.
- Patch panel body and faceplate: 18 gauge powder-coat painted steel
- Fiber optic adapters: UL 90 V-0 Thermoplastic
- Cable Glands: Plastic with max. cable diameter of 12mm (14mm max. also available)
- Dimensions with adapters installed: (H x D x W) 6.25″ x 5.125″ x 2.75″
- Mounting Options: Rear DIN-Rail, Side DIN-Rail or surface mount
- Weight: 1.5lbs.
- Protection class: IP20
- Standards: UL Listed 1863 (Communications-Circuit Accessories), CE
- Operating temperature: -40 to +75 deg. C
- Storage/transport temperature: -40 to +80 deg. C
- Relative humidity (non-condensing): 10% to 95%
- Insertion Loss: ≤.3dB (Multimode), ≤.2dB (Singlemode)
- Plug/Unplug Durability: 1000 times
DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode ST/SC Duplex Adapters, UL/CE.
SNAP® Fiber Optic Patch Panels

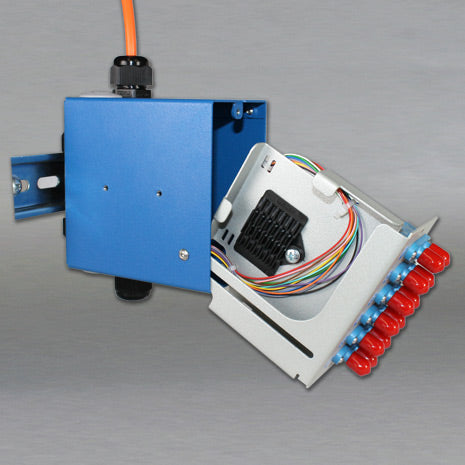

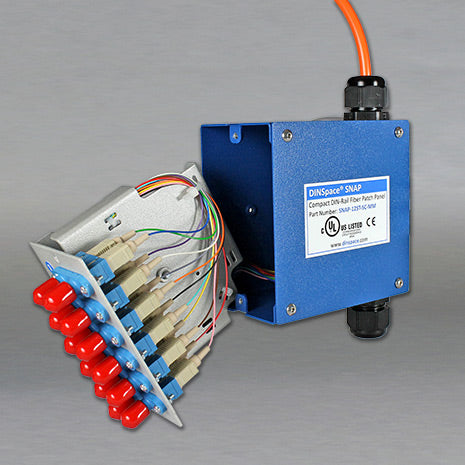

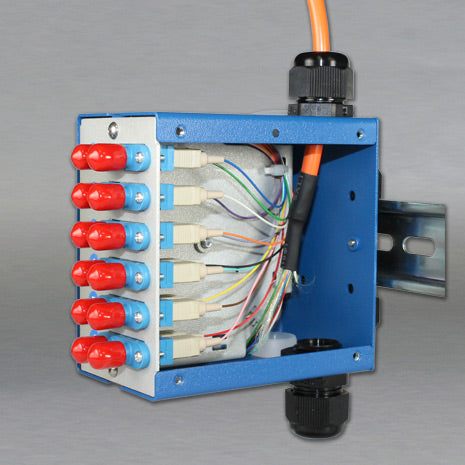

Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”.
