j5create Wireless Display HDMI Extender, JVAW53
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Wireless: Stable connection, high quality, and low latency under 60 ms
- Antenna 5 dB 2 x 2: Longer distance up to 200 ft (60m)
- Support for transfer of IR remote control signals
- Supports 480p/576p/720p/1080p/480i/576i/720i/1080i
- A flexible audio/video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- Compatible with PS4® and Nintendo Switch™ game systems, Blu-ray™ players, set-top boxes and more
- Specs+
- Package Contents+

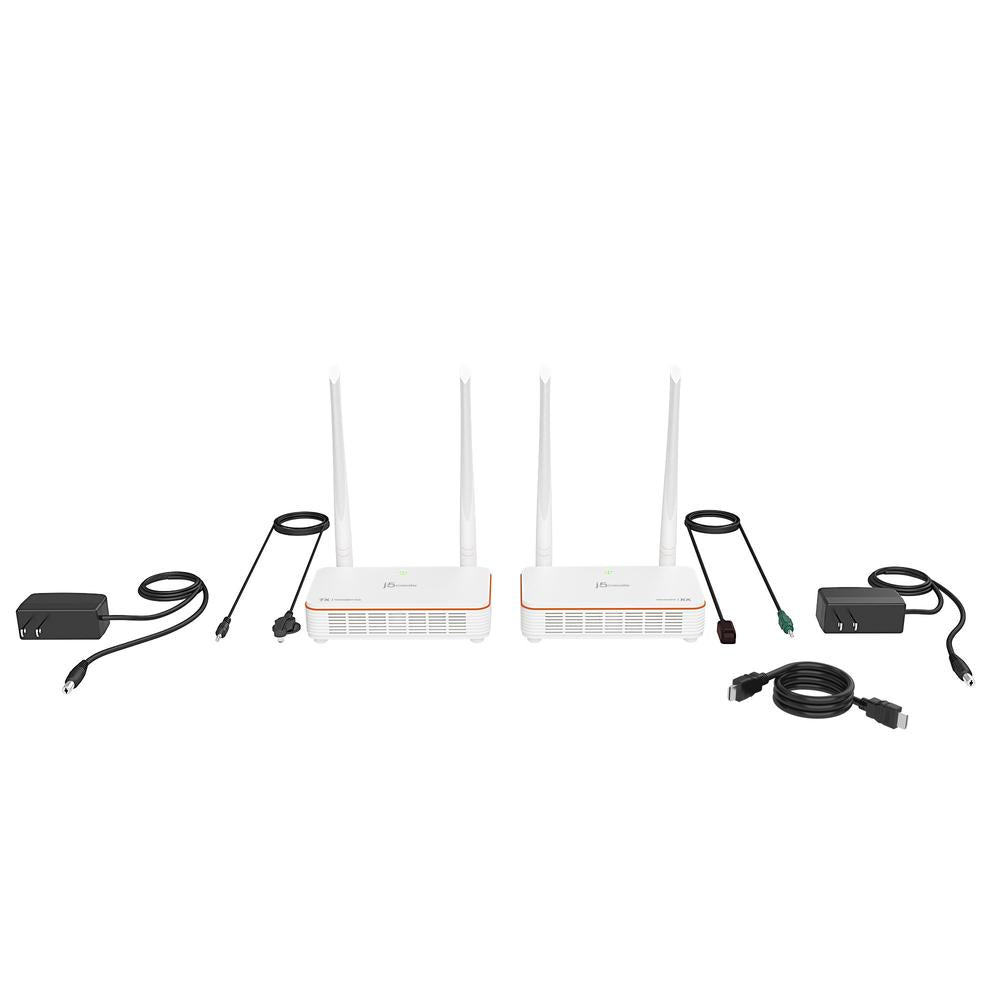

- JVAW53TX x1/JVAW53RX x1
- IR blaster cable x1/IR receiver cable x1
- 5V DC/2A adapter x2
- 1m HDMI™ cable x1
- Quick installation guide x1
- Reviews+
- Wireless: Stable connection, high quality, and low latency under 60 ms
- Antenna 5 dB 2 x 2: Longer distance up to 200 ft (60m)
- Support for transfer of IR remote control signals
- Supports 480p/576p/720p/1080p/480i/576i/720i/1080i
- A flexible audio/video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- Compatible with PS4® and Nintendo Switch™ game systems, Blu-ray™ players, set-top boxes and more
- JVAW53TX x1/JVAW53RX x1
- IR blaster cable x1/IR receiver cable x1
- 5V DC/2A adapter x2
- 1m HDMI™ cable x1
- Quick installation guide x1
j5create Wireless Display HDMI Extender

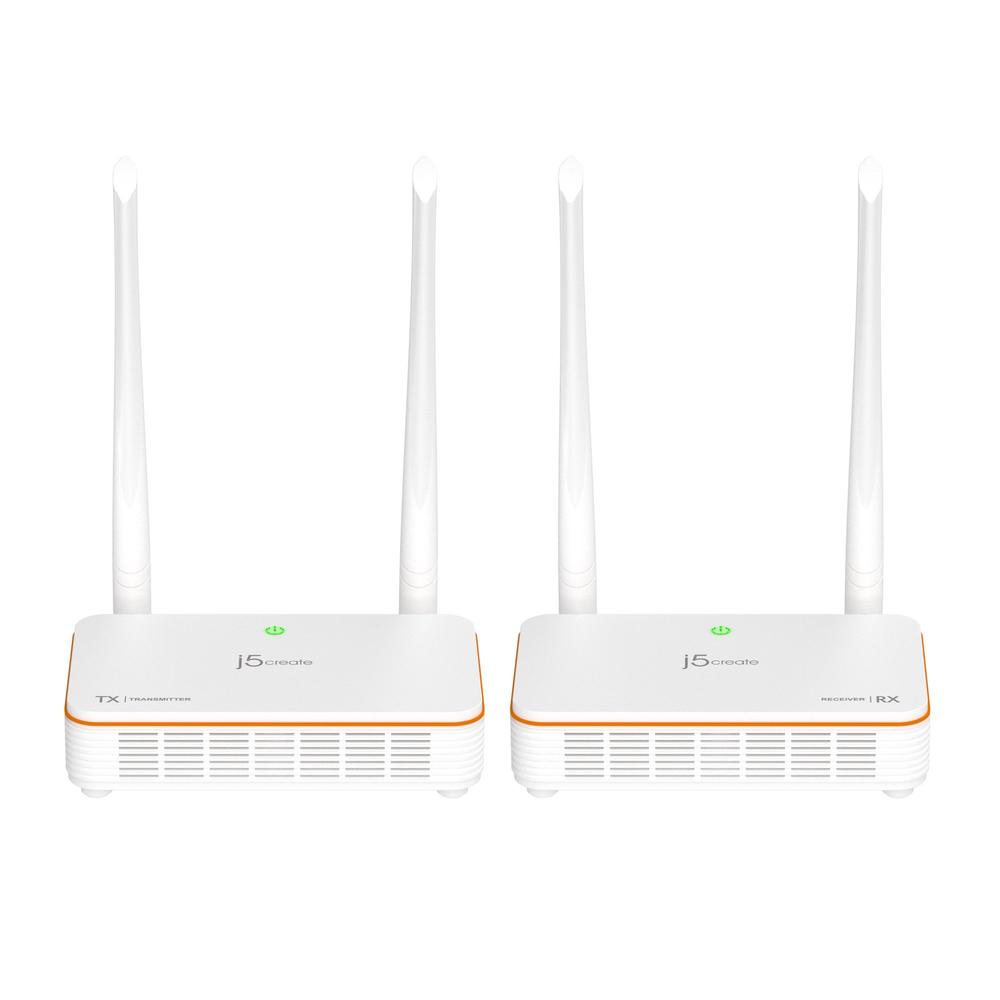

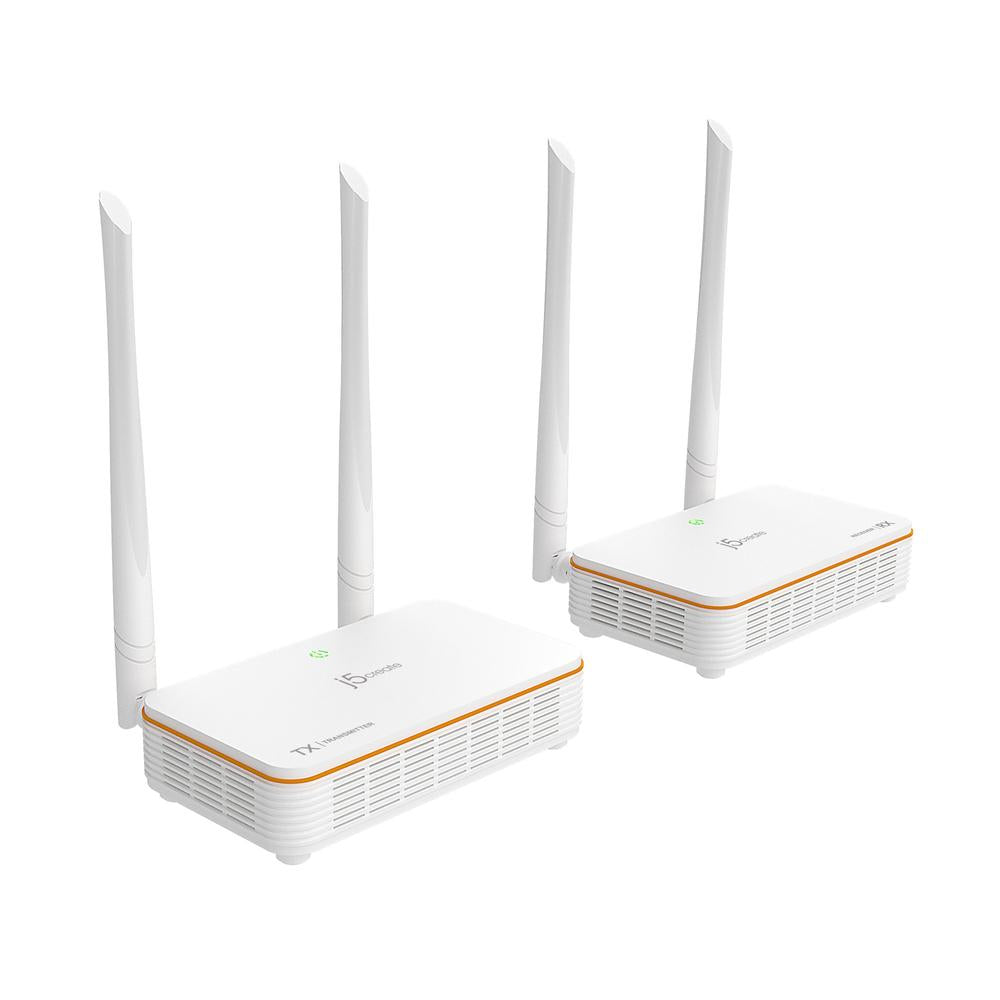

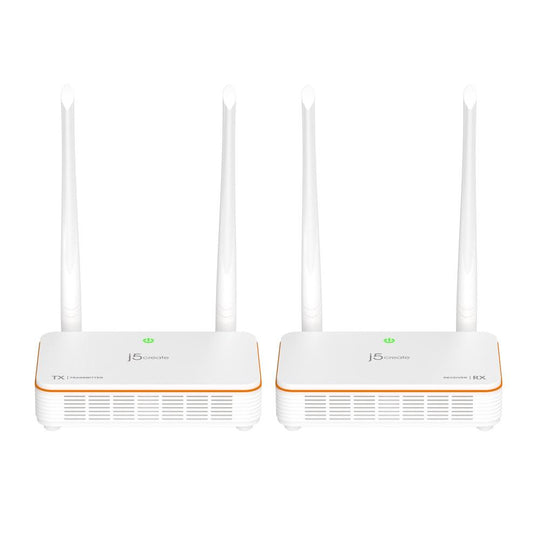

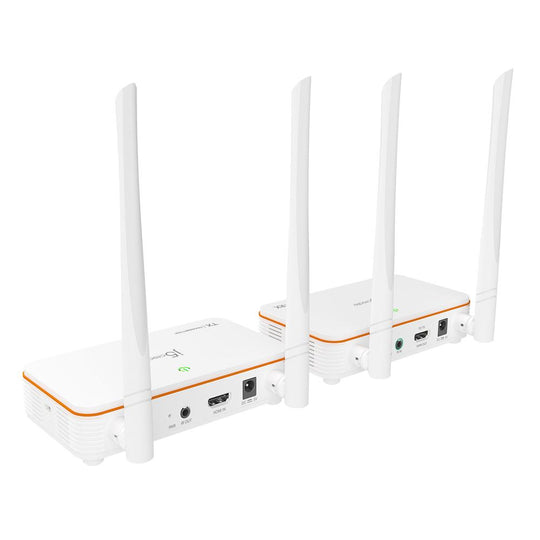

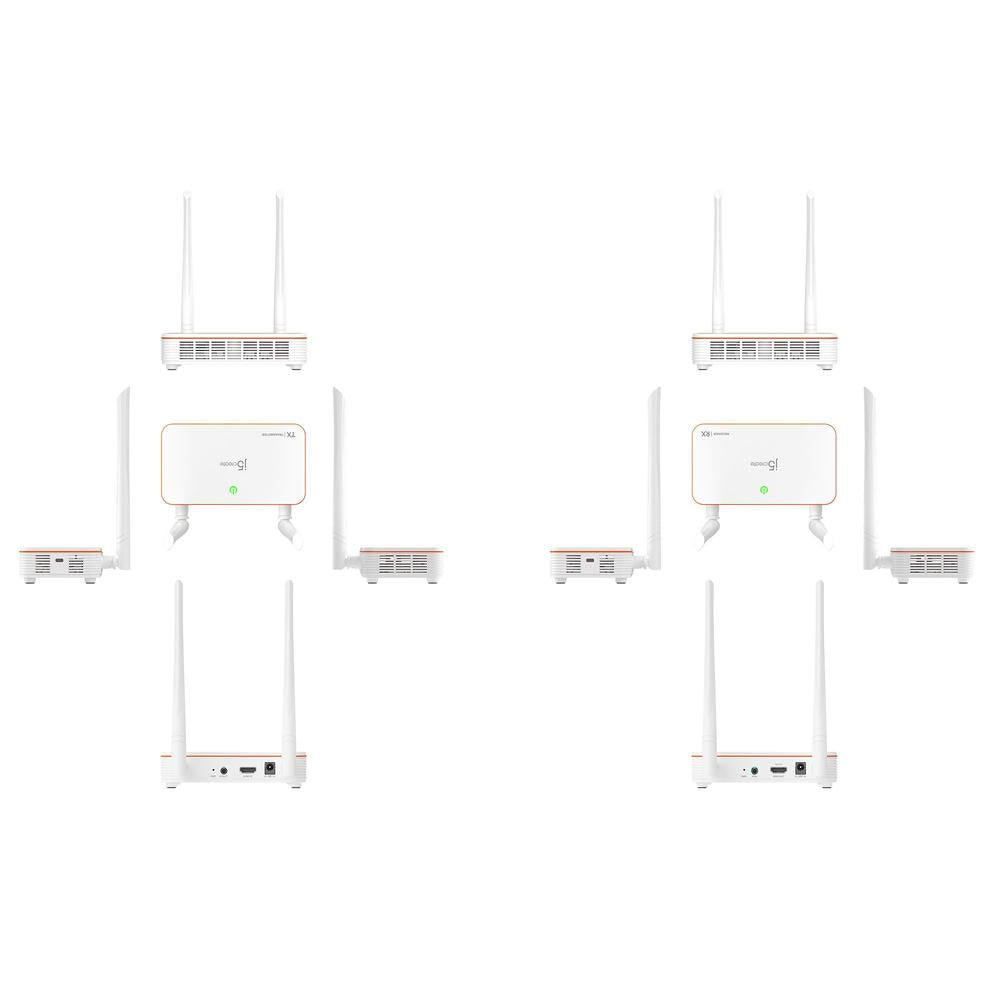

The JVAW53 HDMI™ over Wireless Extender includes a transmitter and receiver kit. It can send a high definition video and audio signal to an HDMI™ enabled TV set, projector or LCD PC monitor display device with receiver distance up to 60 meters and nearly zero latency.
Users can extend other HDMI™ sources, including DVD players, Blu-ray™ players, PCs, notebooks and gaming machines (ex. Sony® PS4®, Nintendo Switch™). The JVAW53 is fully HDCP compliant via HDMI™, supporting resolutions up to 1080p and stereo digital audio. The extender also supports the transfer of IR remote control signals to the receiver side.

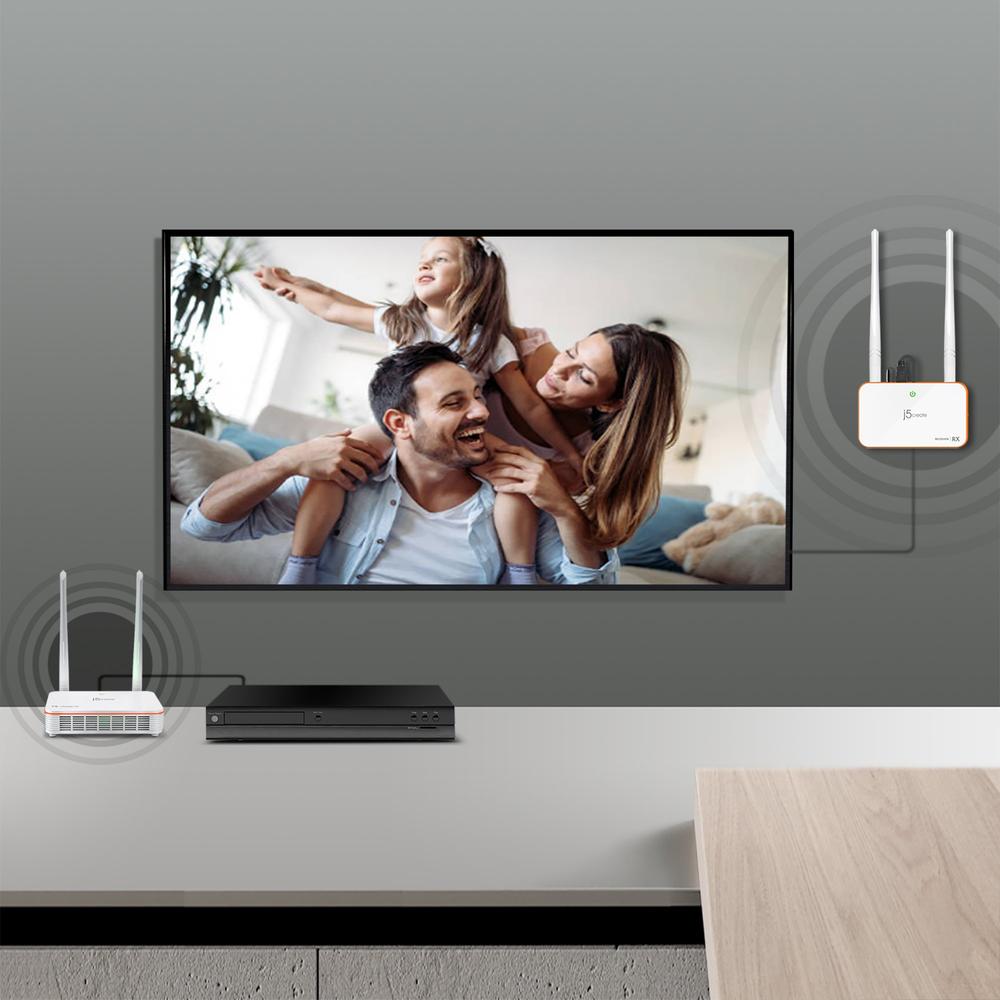

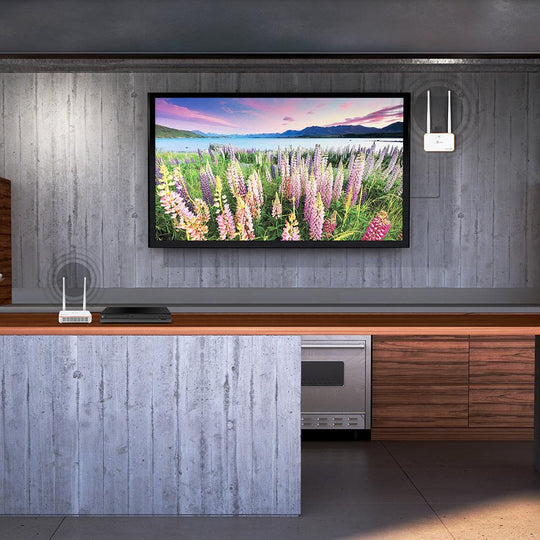

ApplicationBasic product functions and application scenarios: converts the passage of the HDMI™ or IR signal into a wireless signal, converting it into a flexible means of transmission and reception. It addresses the issue of the TV being too far away from the host by eliminating the need for wires, allowing the TV to be moved outdoors for long distance use.
During meetings, projectors or large touch screens mounted high above can also be used to create a wireless conference room and/or a wireless media environment.
Broadcast Wirelessly. No Wi-Fi® needed.
Simply connect an HDMI™-enabled source and transmit audio and video wirelessly
Optimized Viewing Experience
Watch your favorite videos in HD anywhere you like without costly cable installation and clutter.
Ultra-Low Latency with a Broad Wireless Range
Extend HDMI™ audio/video signals up to 200ft. (60m) with nearly zero delays (less than 0.06s/60ms).
Warranty |
2 year |
Input / Output | |
HDMI™ Connector |
Type-A 19-pin female input x1 |
Power Supply |
DC jack 3.5 mm |
LED |
LED x1 (with 3 colors) Red: power on Orange: system booting Green: system ready |
Mechanical |
|
Enclosure Type |
Plastic |
Enclosure Color |
White |
Enclosure Dimensions (W x D x H) |
135 x 76 x 33.5 mm |
Product Weight |
150.5g |
Power Supply |
Input: 100-240V AC, 50-60 Hz, 0.4A Output: 5V DC, 2A, 10W |
Power Consumption |
5V DC, 6.5W |
Operational Environment | |
Operational Temperature |
+32 to +104°F (0 to +40°C) |
Storage Temperature |
-40 to +158 °F (-40 to +70 °C) |
Relative Humidity |
20% to 80% RH, noncondensing |
Regulatory Compliance |
CE, FCC, RCM, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE |
Technical | |
HDMI™ Compliance |
HDMI™ v1.3 |
HDCP Compliance |
HDCP 1.2 |
Video Impedance |
100 Ω |
HDMI™ Audio Formats |
Stereo digital audio |
Video Resolution |
Input Resolution Range: 640x480 to1600x1200 and 1920x1080, 480p, 576p, 720p, 1080p @ 60/50Hz Output Resolution Range: - 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080 - HDTV 480p, 576p, 720p, 1080p, 480i, 576i, 720i, 1080i |
Wireless Frequency Range |
IEEE 802.11ac (5 GHz Band I, Band IV, CE only Band I) |
Wireless Channel Bandwidth |
20 MHz or 40 MHz or 80 MHz |
RF Output Power |
+15 dBm +/-1 dBm |
Distance |
Up to 60 meters |
Antenna Type |
Dual external antenna (+5 dBi) |
Security |
128/256 bit AES based encryption and WPA2 authentication protocol to protect data. |
IR Return Frequency |
30 - 60 kHz |
ESD Protection |
Human body model: air-gap discharge: ±8 kv contact discharge: ±4 kv |
OVP Protection |
Voltage protection up to DC 20 volts |
