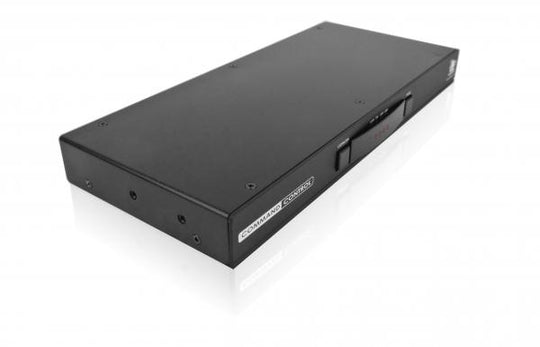

ADDER CCS-PRO4 Command and Control Switch

SKU#: CCS-PRO4-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: CCS-PRO4-US

UPC#:
$783.75

SKU#: CCS-PRO4-US

UPC#:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • ADDER CCS-PRO4 Command and Control Switch - Firefold

    The ADDER® CCS-PRO4 Command and Control switch enables users to interact with up to four computers using a single mouse and keyboard. The operator can simply move the mouse cursor across screen borders to instantly select the computer they need to control providing the experience of a single desktop, saving both time and desk space.

    • Improved desk ergonomics: one keyboard and mouse to operate up to four computers, saving desk space and reducing mental load
    • Seamless switching: Free-Flow allows users to switch intuitively between target computer by moving the mouse pointer from screen to screen
    • Flexible audio: amalgamated audio from selected computer sources enables the user to hear all relevant audio and alarm events

    Note: This product is only compatible with other Adder branded products

  • Features+
  • Seamless switching with Adder Free-Flow technology
    Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. Unlike software-only variants, no software or networking is required on your mission critical computers for Free-Flow to work.

    Improved desk ergonomics
    With only one keyboard and mouse required to operate four computer systems, the desk space can be made more ergonomically effective and reduces the time taken for operators to multiplex to different systems.

    Multi-Monitor Free-Flow
    The system is able to support four monitors per computer. To enable Free-Flow on multi-monitor computers, a driver must be installed on the target computer. This feature is currently available for Windows computers only.

    External control options
    The unit can be controlled and switched via hotkeys, mouse clicks, Ethernet, RS232 or remote 3 button mouse. With the open API, the unit can be easily set up and integrated into 3rd party systems.

    Instant switching with True USB Emulation
    Adder’s True USB Emulation technology overcomes limitations of other KVM switches by emulating the true character of the connected devices to all the computers simultaneously. This means that you can use the extra function keys, wheels, buttons and controls, without sacrificing switching times.

    Independent simultaneous device selection
    Switching options enable you to use the keyboard and mouse on one computer whilst your USB peripherals and speakers are independently connected to different computers. You can of course still switch all the connected devices to any one of the connected computers.

    Screen illumination module
    The CCS-XB illumination module is an optional accessory which connects to the CCS-PRO4. It gives users the option to have a LED indicator positioned on each screen to identify which screen is currently controlling. The color and intensity can be controlled for each screen. A maximum of ten LED indicators can be supported.

    Redundant power
    For mission critical applications, dual power inlets are now available.

  • Specs+
  • Linux User?
    Alpha drivers now available for customer trial

    Hardware compatibility
    All computers equipped with certified USB1.1 and USB2.0 connections

    Software compatibility
    All known operating systems for single screens except Linux operating systems, which often have no native support for absolute mouse positioning (see driver trial above). Free-Flow works by reporting absolute mouse coordinates. Free-Flow Configuration and firmware upgrade programs are available for use with Windows only.

    Computer connections
    Audio 3.5mm in x 4, USB type B x 4

    User console connections
    Audio 3.5mm out x 1, USB type A x 2 (Console- USB2.0 Low and Full Speed), USB type A x2 (Enumerated USB2.0 Low, Full and Hi-Speed)

    USB specification for console connection
    Supports up to six Low or Full Speed devices. Keyboards which support multiple devices behind a hub can now be supported. The USB class of the supported devices on the console port is limited to HID devices only. It is not possible to use other USB devices e.g. card readers, memory sticks or touch screens on the console port. These devices need to be connected to the enumerated USB ports on the switch

    Physical design
    Robust metal construction. 290mm/11.4”(w), 30mm/1.2” (h), 130mm/5.1” (d), 0.90kg/2lbs

    Power
    Toby 3 pin jack x 2 (one power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter. 12VDC, 18W output from power adapter

    Connection to CCS4
    10p10c connector via cable VSC46


    ADDITIONAL ACCESSORIES

    • VSC22: Audio Cable 2 meters (3.5mm stereo jack)
    • VSC24: USB cable 2 meters (type A to B)
    • RC4-8P8C: RC4 remote 4 button switch and 3 meter cable
    • CCS-XB: Expansion box for LED illumination of screens (Including 4 light indicators and connection cable VSC46)
    • CCS-LED: Multi color LED light indicators with 3 meter cable
    • VSC46: 1 meter connection cable from CCS-XB to CCS4
    • PSU-IEC-12VDC-1.5A = optional power supply



    TECHNICAL SPECIFICATIONS (CCS-XB Expansion Module)
    For use with CCS4-USB devices with firmware 2.0 or above & CCS-PRO4

    Connections to desk
    6P6C connecters, x 10, for the CCS-LED modules. 10P10C connector, x 1, for upgrade cable or remote control RC4 4-button switch

    Physical design
    Robust metal construction. 95mm/3.7”(w), 30mm/1.2” (h), 65mm/2.6” (d), 0.22kg/1.65lbs

    Operating temperature
    0 to 40ºC / 32 to 104ºF

    Approvals
    CE, FCC

  • Package Contents+
    • Adder CCS-PRO4 and locking power adapter
